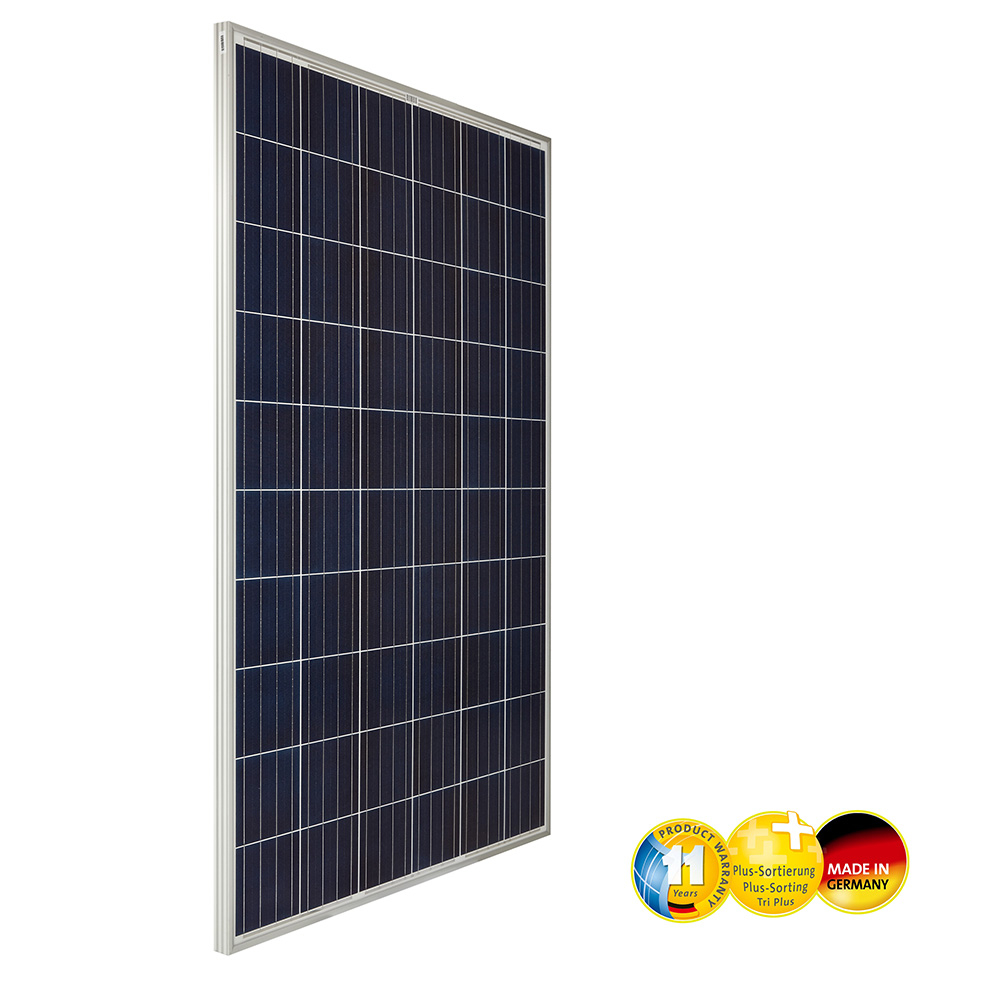

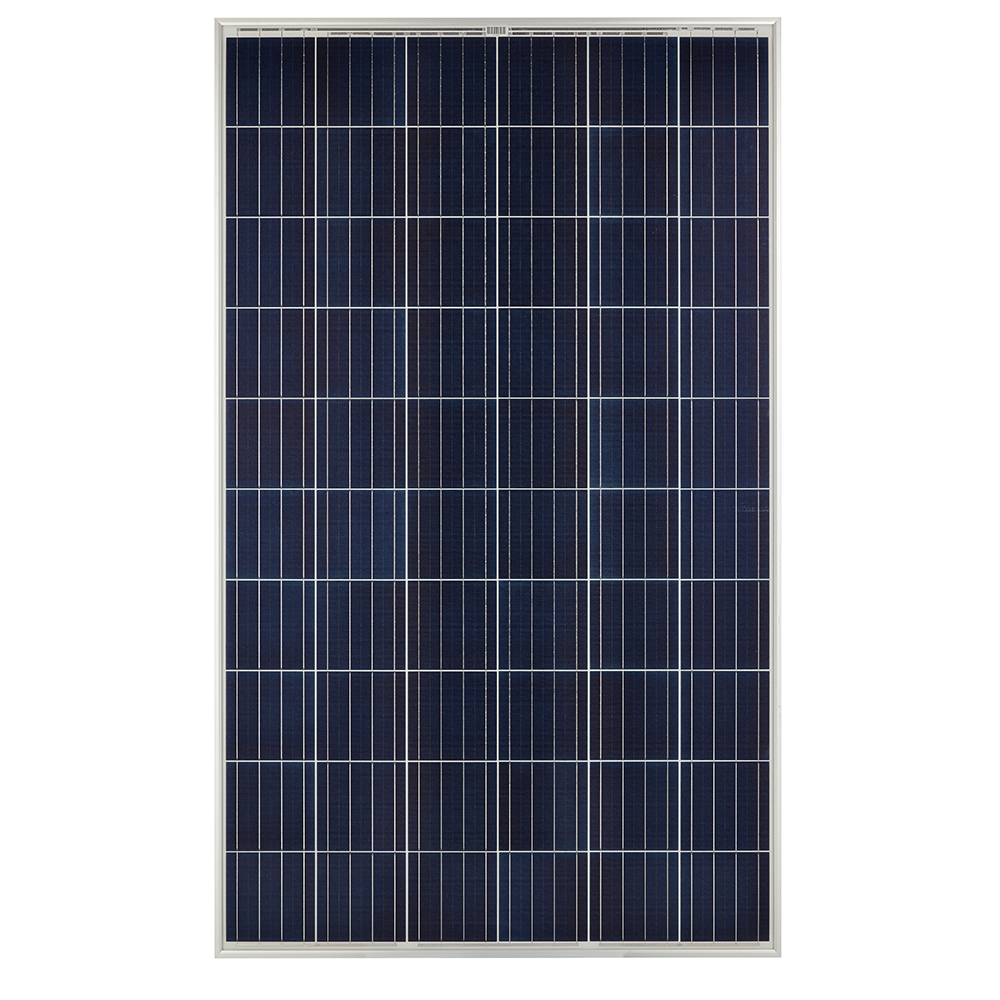

Solar Module Heckert Solar NeMo® 2.0 60 M monocrystalline 330 Wp

Solar power – environmentally friendly and self-sufficient power supply

The self-supply of electricity is one of the main reasons for the purchase of a photovoltaic system.

Monocrystalline modules are just the right choice, if e.g. garden houses or fishermen's hut to be equipped with a solar system.

Because of the high silicon content of the solar cells these modules have a very effective efficiency and thus achieve a higher solar yield.

The NeMo^® solar module is manufactured in Germany, is TÜV-certified according to the latest IEC standard (IEC 61215:2016, IEC 61730:2016, IEC 61701: 2011/ EN 61701:2012, IEC 62716: 2013/ EN 62716:2013) and is produced with green electricity. It has also been successfully tested in the fields of salt fog corrosion and ammonia resistance.

The NeMo^® 2.0 60 M solar module is characterized by a stable and long-lasting modular design and reliable performance.

Delivery content

• Solar module NeMo^® 2.0 60 M 320 Wp monocrystalline
• Connection cable
• Mounting instruction DE

Technical Data

Power	330 Wp
Voltage (max.)	At max. power 33.55 V
Current (max.)	At max. power 9.91 A
Open circuit voltage	41.10 V
Short circuit current	10.44 A
Cells	60 x mono
Efficiency cell	19.7 %
System voltage (max.)	1000 V DC
Temperature coefficient	Performance: -0.38 % Voc -0.35 % | Isc 0.07 %
Glass	Anti-reflective coated ESG glass
Frame	Silver anodized aluminum
Protection class	II
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm2 | TE Connectivity PV4-S or MC4 plug +/-
Certificates	TÜV IEC 61215:2016 61730:2016
Dimensions (L x W x H)	1670 x 1006 x 38 mm
Weight	18.3 kg

---
