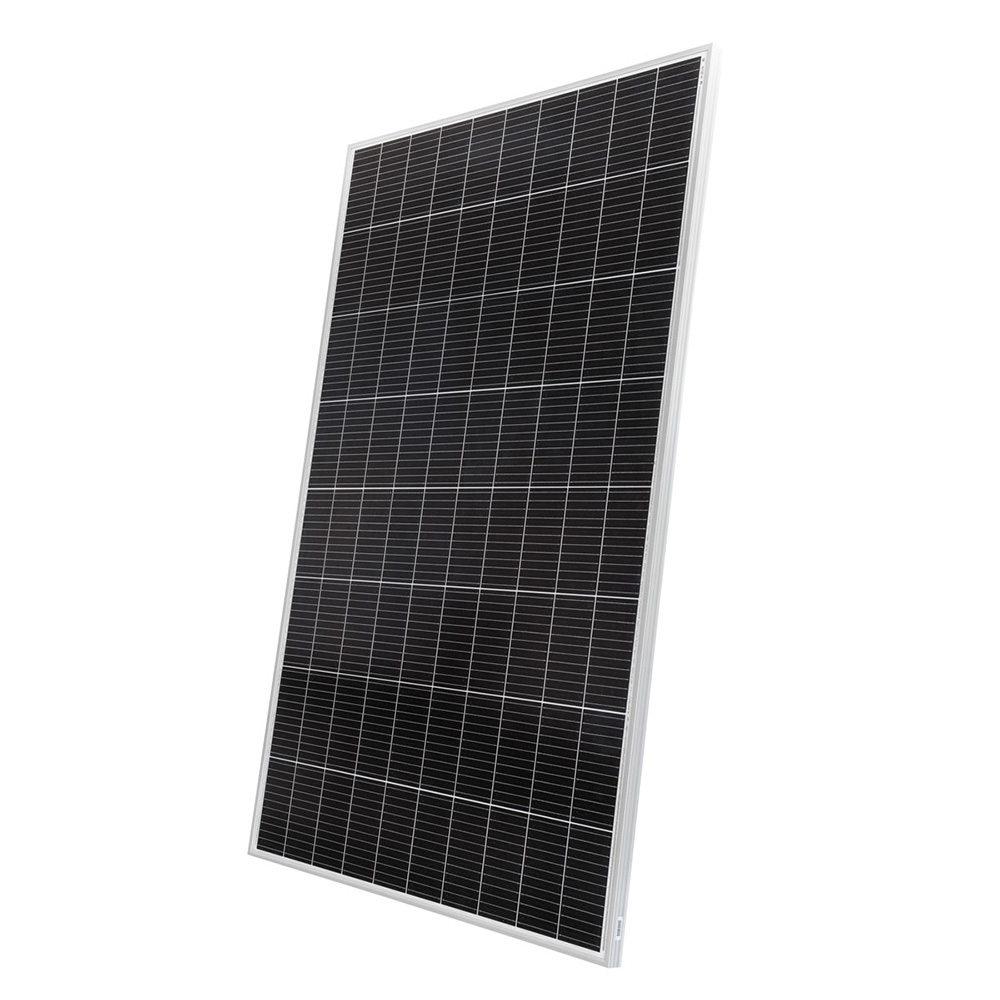

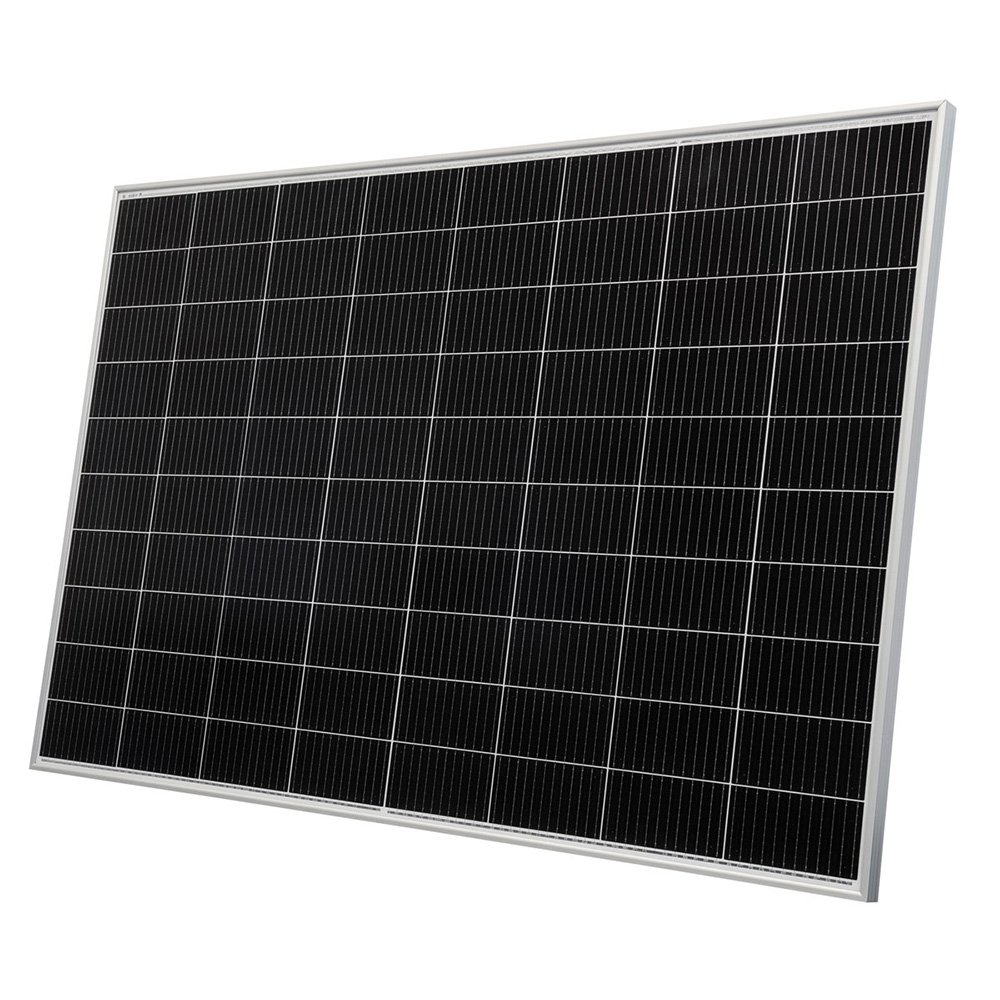

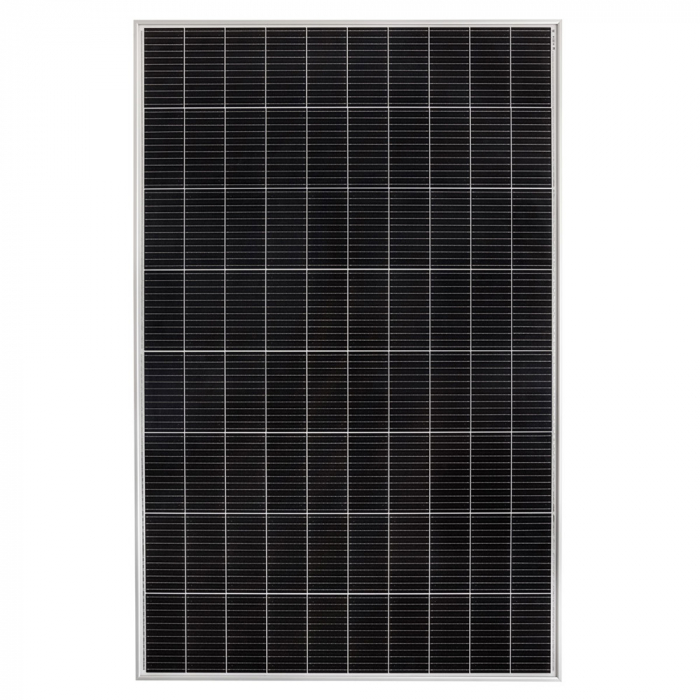

Solar Module Heckert Solar NeMo® 4.2 80 M monocrystalline 400 Wp

Solar power – environmentally friendly and self-sufficient power supply

The self-supply of electricity is one of the main reasons for the purchase of a photovoltaic system.

Monocrystalline modules are just the right choice, if e.g. garden houses or fishermen's hut to be equipped with a solar system.

Because of the high silicon content of the solar cells these modules have a very effective efficiency and thus achieve a higher solar yield.

The NeMo^® solar module is manufactured in Germany, is VDE-certified according to the latest IEC standard and is produced with green electricity. It has also been successfully tested in the fields of salt fog corrosion and ammonia resistance.

The NeMo^® 4.2 80 M solar module is characterized by a stable and long-lasting modular design and reliable performance.

Delivery content

• Solar module NeMo^® 4.2 80 M 400 Wp monocrystalline
• Connection cable
• Mounting instruction

Technical Data

Power	400 Wp
Voltage (max.)	At max. power 47.04 V
Current (max.)	At max. power 8.56 A
Open circuit voltage	54.81 V
Short circuit current	9.03 A
Cells	80 mono G12 cells in half-cell design 12 busbar
Efficiency cell	20.5 %
System voltage (max.)	1000 V DC
Reverse current	32 A
Temperature coefficient	Performance: -0.34 % Voc -0.263 % | Isc 0.037 %
Glass	3.2 mm anti-reflective coated ESG glass
Frame	35 mm silver anodized aluminum
Protection class	II
IP protection	PV-GZX312 junction box IP 68
Module type	Monocrystalline
Module cable	Ø 4 mm2 | MC4 plug +/- IP 68 Cable length: 2 x 1.60 m
Certificates	VDE IEC 61215, IEC 61730
Dimensions (L x W x H)	1736 x 1122 x 35 mm
Weight	21 kg

---

Compatible with

---

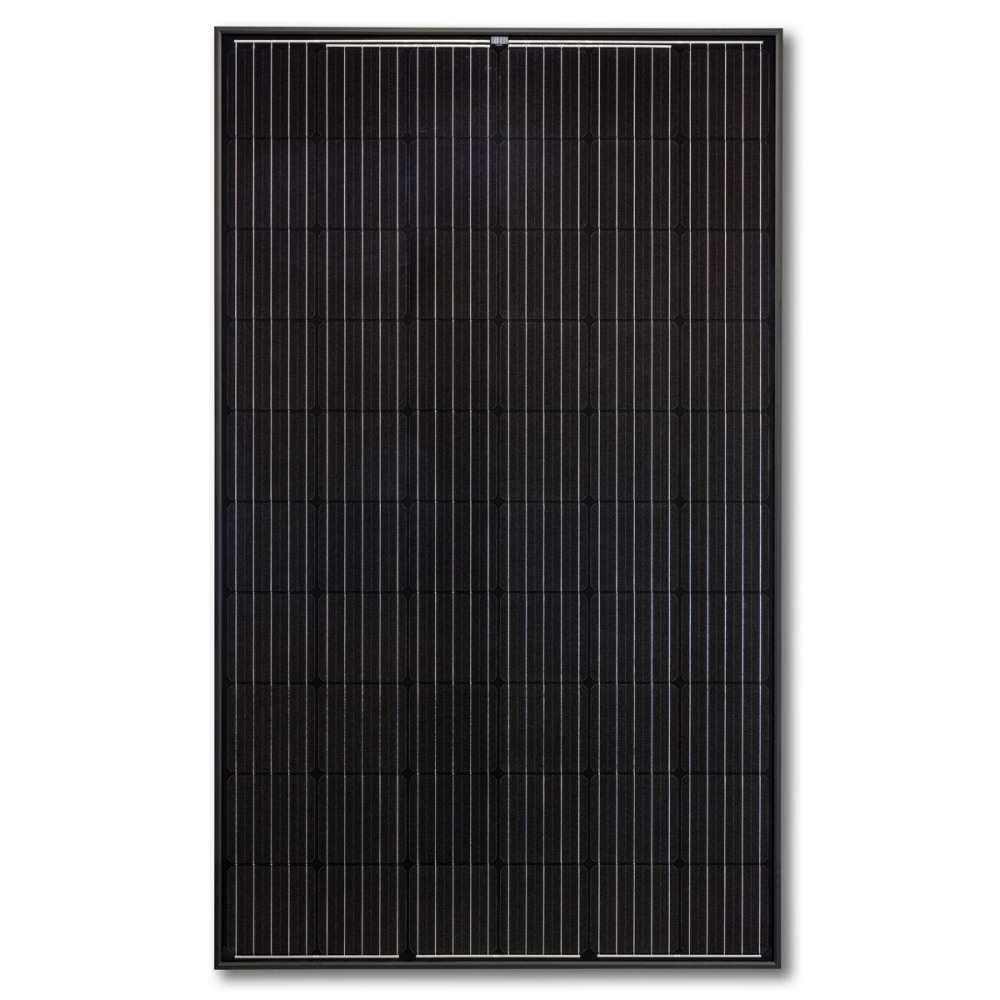

Alternative product variants
