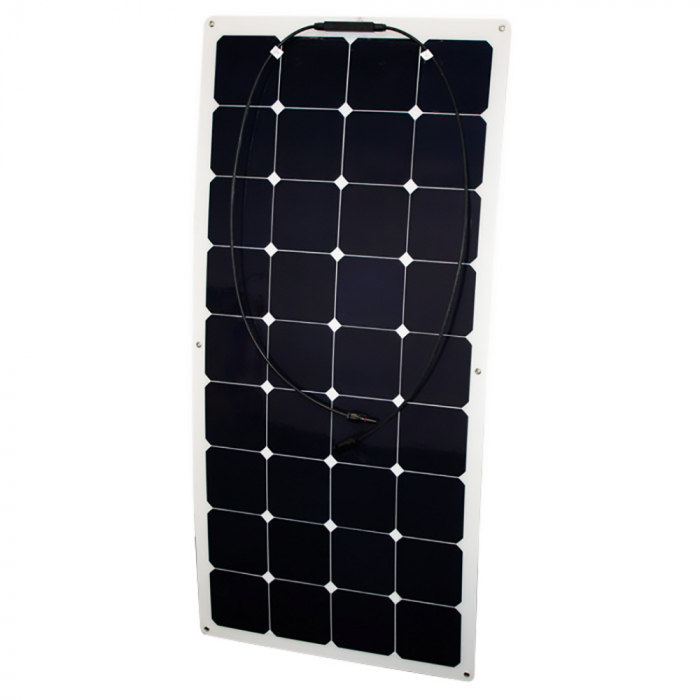

Solar Module Phaesun® Semi Flex 130 monocrystalline 130 Wp
Solar Module Phaesun® Semi Flex 130 monocrystalline 130 Wp

Solar Module Phaesun® Semi Flex 130 monocrystalline 130 Wp

  • High efficient, light weight, flat, semi flexible
  • High power generation, small size
  • Perfect for mobile applications for charging batteries
  • No sharp edges
  • Areodynamic
  • ETFE with high light transmission properties

Item no. 200062 | EAN 4250730202212

287,98 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Variants  |  Downloads

Solar module semi-flexible, ultra-light – high power density with minimal area

These semi flexible ultra light weight solar modules are perfectly suitable for mobile use such as camping holidays and outdoor activities, as well as for the fixed use on boats, mobile homes and trucks. The dark blue back-contact cells offer highest efficiency.

Front foil ETFE: Ethylene tetrafluorethylene is a fluorine-based plastic, designed to have high corrosion resistance and strength over a wide temperature range. ETFE has excellent chemical, electrical and highenergy radiation resistance properties.

The most important features
  • High efficient, light weight, flat, semi flexible
  • High power generation, small size
  • Perfect for mobile applications for charging batteries
  • No sharp edges
  • Areodynamic
  • ETFE with high light transmission properties

Delivery content
  • Solar module Phaesun® Semi flex 130 monocrystalline
Customised Solar Island Systems from IVT: Download questionnaire

Technical Data

System voltage 12 V DC
Power 130 W
Voltage (max.) At max. power 22.3 V
Current (max.) At max. power 5.83 A
Open circuit voltage 26.8 V
Short circuit current 6.29 A
Cells 36 x mono
Efficiency module 20.1 %
System voltage (max.) 45 V
Operating temperature -40 °C to +85 °C
Temperature coefficient Power - 0.32 % |
Voc - 0.27 % | Isc 0.056 %
Front ETFE
Frame Silver anodized aluminium
IP protection Junction box IP 65
Module type Monocrystalline
Module cable Ø 4 mm2 | Length: 900 mm |
Connector: Standard4
Certificates CE, RoHs
Dimensions (L x W x H)     1200 x 540 x 3 (19 mm)
Weight 2.5 kg
