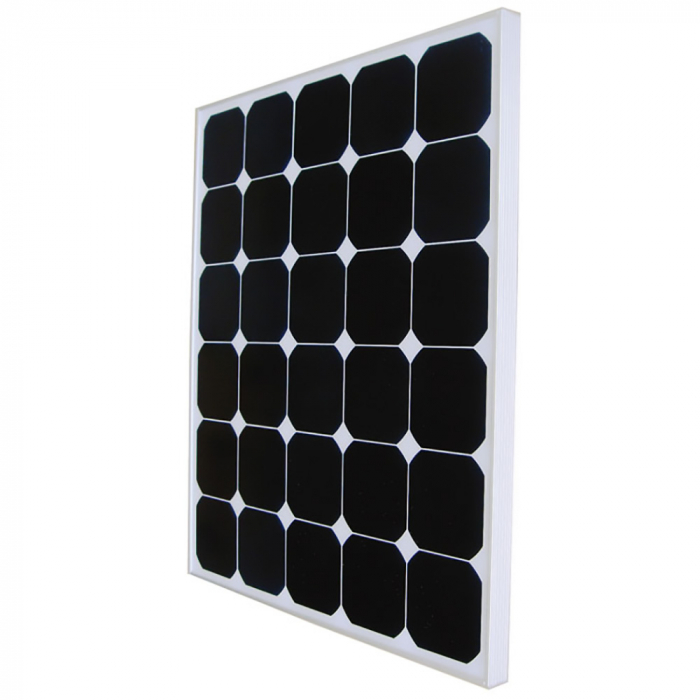

Solar Module Phaesun® Sun Peak SPR 110 compact monocrystalline 110 Wp

Solar module with back-contact monocrystalline solar cells

Phaesun^® Solar Modules Sun Peak monocrystalline modules has multiple advantages. These modules are made with back-contact monocrystalline solar cells which are aesthetically pleasing in appearance.

The cells have a unique structure, different from conventional cells, they yield average conversion efficiencies up to 20 %.

The new Sun Peak solar module line is equipped with Standard 4 connectors!

The most important features

• With back-contact silicon solar cells
• Over 20 % efficiency
• For 12 V to 48 V batteries in off-grid systems
• High reliability due to high quality materials
• Standard 4 connectors for easy installation

Delivery content

• Solar module Phaesun^® Sun Peak SPR 110 compact monocrystalline

Technical Data

System voltage	12 V DC
Power	110 W
Voltage (max.)	18.6 V
Current (max.)	5.91 A
Open circuit voltage	22.3 V
Short circuit current	6.39 A
Cells	30 x mono
Efficiency module	20.7 %
Power tolerance (max.)	+/- 5 %
System voltage (max.)	70 V
Operating temperature	-40 °C to +85 °C
Temperature coefficient	Power -0.38 % | Voc -0.27 % | Isc 0.05 %
Front	Tempered glass
Frame	Scratch resistant anodized aluminum with Twin-Wall Profile
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm2 | Length: 900 mm | Connector: Standard4
Dimensions (L x W x H)	795 x 669 x 35 mm
Weight	5.7 kg

---
