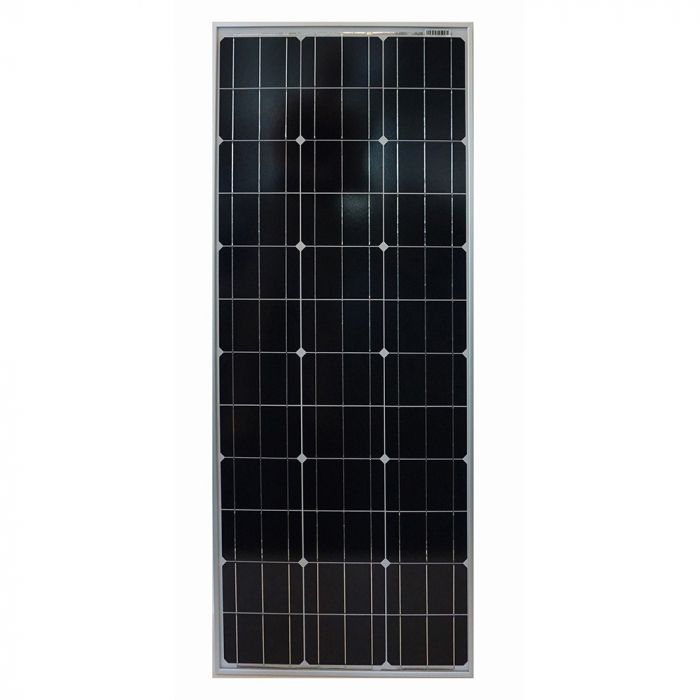

Solar Module Phaesun® Sun Plus 120 monocrystalline 120 Wp

Solar power – environmentally friendly and self-sufficient power supply

The solar module Phaesun^® Sun Plus 120 is suitable for both professional and private use.

A double framing made of scratch-resistant, anodized aluminum ensures excellent stability of the modules. The crystalline cells are embedded in low-iron crystal glass and a double-layer, highly resistant film.

The practical junktion box (dustproof and watertight IP 65) ensures a user-friendly and safe outdoor installation.

Delivery content

• Solar module Phaesun^® Sun Plus 120 monocrystalline
• Connection cable
• Operation manual DE, EN

Technical Data

System voltage	12 V DC
Power	120 W
Voltage (max.)	At max. power 20.0 V
Current (max.)	At max. power 6.0 A
Open circuit voltage	24.0 V
Short circuit current	6.5 A
Cells	36 x mono
Efficiency cell	21.9 %
Efficiency module	19.2 %
Power tolerance (max.)	+/- 3 %
System voltage (max.)	70 V
Operating temperature	-40 °C to +85 °C
Temperature coefficient	Power -0.45 % | Voc -0.37 % | Isc 0.081 %
Front	Tempered glass
Frame	Silver anodized aluminium
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm2 | Length: 900 mm | Connector: Standard4
Dimensions (L x W x H)	1240 x 505 x 35 mm
Weight	8.2 kg

---
