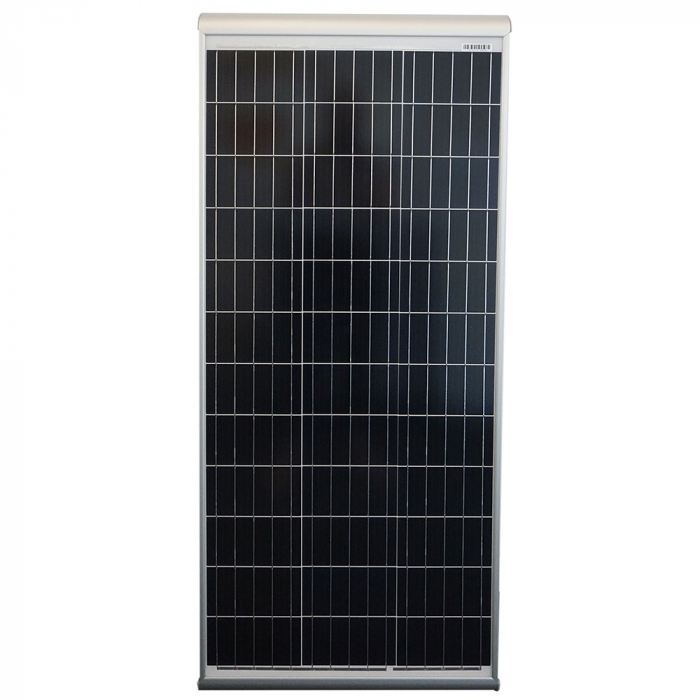

Solar Module Phaesun® Sun plus 120 AERO monocrystalline 120 Wp

Solar power – environmentally friendly and self-sufficient power supply

This Solar Module Sun Plus 120 Aero is designed for industrial and private applications using. The frame scratch resistant anodised aluminum with a twin wall.

The junction box is borrowed from large sized modules and support a user friendly and outdoor proof field installation. Crystalline cells are sandwiched between tempered low iron solar glass sheets and double layered highly resistant foil.

The Sun Plus Aero Module has integrated spoilers for easy installation.

Delivery content

• Solar module Phaesun^® Sun Plus 120 Aero monocrystalline

Technical Data

System voltage	12 V DC
Power	120 W
Voltage (max.)	20.0 V
Current (max.)	6.0 A
Open circuit voltage	24.0 V
Short circuit current	6.48 A
Cells	36 x mono
Power tolerance (max.)	+/- 3 %
System voltage (max.)	70 V
Operating temperature	-40 °C to +85 °C
Temperature coefficient	Power -0.45 % | Voc -0.37 % | Isc 0.081 %
Front	Tempered glass
Frame	Silver anodized aluminium
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm2 | Length: 900 mm | Connector: Standard4
Certificates	CE, RoHs
Dimensions (L x W x H)	1320 x 505 x 55 mm
Weight	10.0 kg

---
