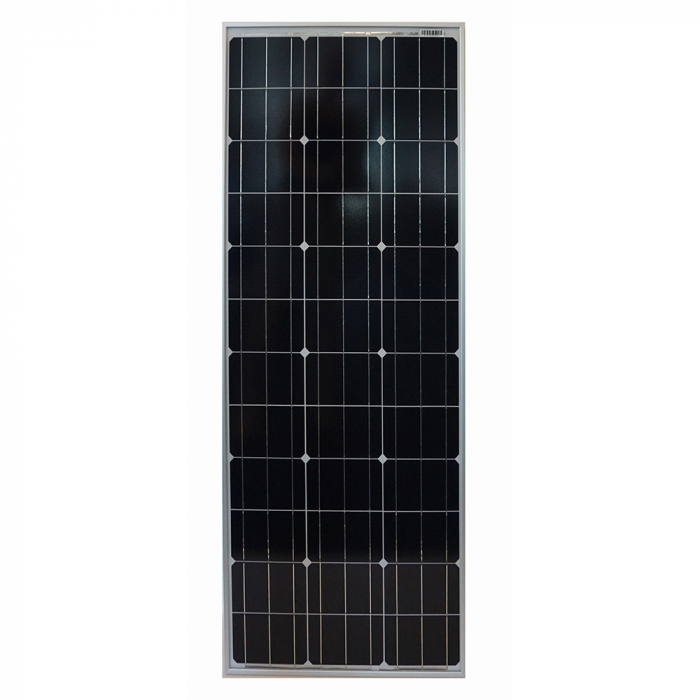

Solar Module Phaesun® Sun plus 140 Small monocrystalline 140 Wp

Solar power – environmentally friendly and self-sufficient power supply

This Solar Module Phaesun^® Sun Plus 140 Small is suitable for both professional and private use.

A double framing made of scratch-resistant, anodized aluminum ensures excellent stability of the modules. The crystalline cells are embedded in low-iron crystal glass and a double-layer, highly resistant film.

The practical junktion box (dustproof and watertight IP 65) ensures a user-friendly and safe outdoor installation.

Delivery content

• Solar module Phaesun^® Sun Plus 140 Small monocrystalline

Technical Data

System voltage	12 V DC
Power	140 W
Voltage (max.)	At max. power 18 V
Current (max.)	At max. power 7.78 A
Open circuit voltage	21.6 V
Short circuit current	8.40 A
Cells	36 x mono
Efficiency cells	18.3 %
Efficiency module	16.2 %
Power tolerance (max.)	+/- 3 %
System voltage (max.)	70 V
Operating temperature	-40 °C to +85 °C
Temperature coefficient	Power -0.43 % | Voc -0.33 % | Isc 0.05 %
Front	Tempered glass
Frame	Silver anodized aluminium
IP protection	Junction box IP 65
Module type	Monocrystalline
Module cable	Ø 4 mm2 | Length: 900 mm | Connector: Standard4
Certificates	CE, RoHs
Dimensions (L x W x H)	1710 x 505 x 35 mm
Weight	9.0 kg

---
