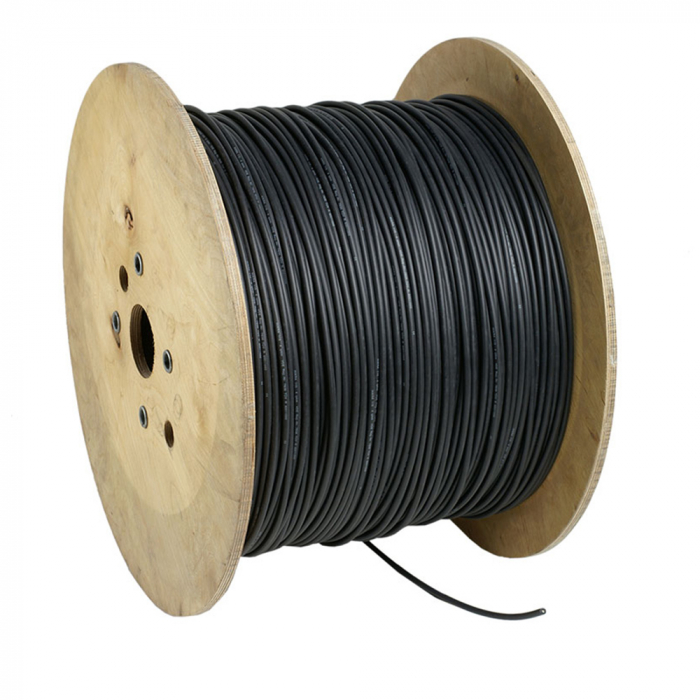

Solar cable HIKRA® PLUS EN50618, 1 x 4 mm²
Solar cable HIKRA® PLUS EN50618, 1 x 4 mm²

Solar cable HIKRA® PLUS EN50618, 1 x 4 mm²

  • Conductor cross section 4 mm²
  • UV, ozone and weather resistant
  • Good abrasion resistance, robust
  • High water-repellent properties
  • Highly flexible and designed for high mechanical loads


Article we delivered from 1 m
Price per meter!

Item no. 220600

1,65 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Downloads

Safe and installation-friendly cabling

The HIKRA® PLUS EN50618 cable is intended for use in PV systems, e.g. in accordance with IEC 60364-7-712, and is suitable for use in and on devices and systems with protection class II insulation.

The double-insulated solar cable can be used both outdoors and indoors with free and fixed installation.

Thanks to robust materials, this solar cable is particularly water-repellent and thus also suitable for laying in the ground.

Delivery content
  • HIKRA® PLUS EN50618 cable (yard goods)

Technical Data

Outer diameter 5.4 mm
Cores 1
Rated voltage (U0/U)    1.5 kV DC and 1.0/1.0 kV AC
Conductor cross section 4.0 mm2
Temperature range -40 °C to +90 °C
Material Polyolefin, double insulated
Insulation Cross-linked special compound XLPO, Shore hardness D 32
Colour Black
Length Yard goods
Weignt 55 g/m

Downloads

Laying Instructions Solar cable HIKRA® PLUS EN50618, 1 x 4 mm²
271.76 KB
Download
Product info Solar cable HIKRA® PLUS EN50618, 1 x 4 mm²
255.57 KB
Download
TÜV Certifikate Solar cable HIKRA® PLUS EN50618, 1 x 4 mm²
409.2 KB
Download
.
