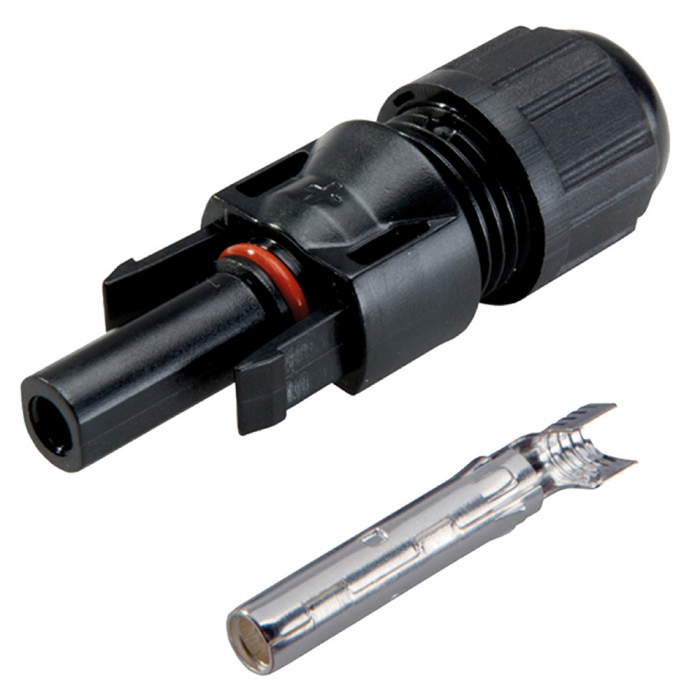

Solar-connector PV Standard4 connector 4 - 6 mm² female EP
Solar-connector PV Standard4 connector 4 - 6 mm² female EP

Solar-connector PV Standard4 connector 4 - 6 mm² female EP

  • Waterproof
  • UV-resistent
  • Cross section 4 - 6 mm²
  • Cable diameter 5.0 - 7.5 mm
  • Max. 30 A

Item no. 002124

4,62 EUR

VAT incl.

Become a sales partner
Request an offer

Field mountable solar connector

The Epic® Solar 4 M plug-in system facilitates the installation of solar systems. With a crimp connection, you can quickly and easily connect PV modules on site.

This system is very versatile, as it can be used in both crystalline and thin-film technology as well as in photovoltaic systems and solar trackers. It is designed for a rated voltage of 1000 V AC/DC.

A connection system that offers high flexibility in the smallest of spaces, low contact resistance for efficient energy transfer and high service and maintenance friendliness, as it is dust and waterproof according to IP 67.

The plug-in system is manufactured exclusively in Germany and is certified by TÜV Rheinland. This speaks for a high standard of quality and processing.

The most important features
  • 4 mm plug-in system with double latching hooks
  • TÜV Rheinland certified
  • Including contacts
  • Waterproof
  • UV-resistant

Delivery content
  • Solar-connector PV Standard4 connector 4 - 6 mm² female EP
  • Instruction manual in DE

Technical Data

Rated voltage 1000 V AC/DC
Rated surge voltage   8000 V
Temperature range -40 °C to +105 °C
IP protection IP 67
Protection class II
Contact resistance    < 0.5 m O
Pollution degree 3
Cross-section 4 - 6 mm2
Weight 10 g
.
