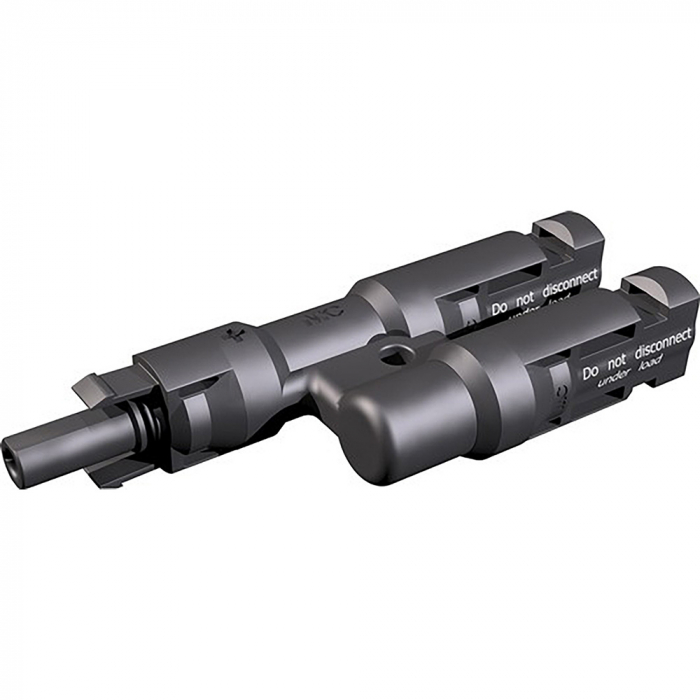

Solar connector Quickclip4 Fmm Standard4
Solar connector Quickclip4 Fmm Standard4

Solar connector Quickclip4 Fmm Standard4

  • Compatible with 4 mm PV connectors
  • Easy and safe installation
  • Waterproof
  • UV-resistant
  • Max. 30 A

Item no. 002143

14,13 EUR

VAT incl.

Become a sales partner
Request an offer

Safe and installation-friendly cabling

For safe and installation-friendly parallel or parallel-serial cabling of PV modules. Pluggable with single-pole MC PV connectors MC4.

Unplugged connections must be protected with a sealing cap.

The most important features
  • Snap-in locking
  • For safe and installation-friendly parallel or parallel-serial cabling of PV modules
  • Proven, long-term stable MC lamina technology

Delivery content
  • Solar connector Quickclip4 Fmm Standard4

Technical Data

Connector system Ø 4 mm
Rated voltage 1000 V DC (MC)
Rated current 30 A
Test voltage 6000 V (50 Hz, 1 min.)
Temparature range -40 °C to +90 °C (MC)
IP protection plugged IP 67
unplugged IP 2X
Protection class II
Overvoltage category CAT II
Pollution degree 2
Contact resistance = 0.5 m O
Contact system     MC contact lamellae
Contact material Copper, tin plated
Insulation material PC
Locking system Snap-in
Flame class UL94-V0
Dimensions (L x W x H)     106 x 40 x 22 mm
Weignt 60 g
