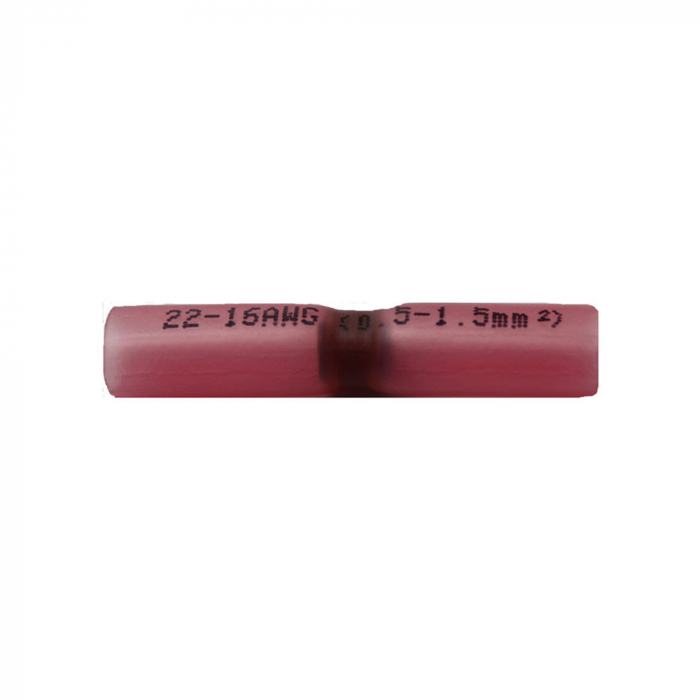

Solder-connector with shrinking tube insulation 0.5 - 1.5 mm², 4 pieces
Solder-connector with shrinking tube insulation 0.5 - 1.5 mm², 4 pieces

Solder-connector with shrinking tube insulation 0.5 - 1.5 mm², 4 pieces

  • Simple and clean application
  • Dielectric strength 14 kV/mm
  • Cable cross section 0.5 - 1.5 mm2
  • Splash-proof connection

Item no. 559068 | EAN 4030072559683

3,00 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Technical data  |  Compatible with  |  Variants  |  Downloads

Solder connector – Connect cable ends securely and protected against water

Cable connections that need to be secure and protected against moisture can easily be converted with shrink-soldering connectors.

Place the two cable ends in the center of the appropriate connector.

Heat the solder joint with a hot air device, when sufficient temperature is reached, the heat-shrinkable tubing attaches to the insulation of the cable and the solder goes around the solder joint.

This guarantees a clean, safe and splash-proof connection of electrical cables.

Delivery content
  • Solder-connector, 4 pieces

Technical Data

Shrinking temperature 125 °C
Dielectric strength 14 kV/mm
Cable cross section 0.5 - 1.5 mm2
Material Polyolefine with inner adhesive
Diameter 4.2 mm
Color red
Length 37 mm
Weight 0.006g
