Speed regulator

Speed regulator DR-2000 – speed infinitely variable and jerk-free adjustable

With the IVT speed regulator you have the possibility to adjust the speed of a wide range of tools steplessly and jerk-free. According to the principle of power regulation you achieve an optimal and constant torque for your tools even with different loads.

Thus, the speed regulator is perfectly suitable for the operation of drills, grinders, hand saws and jigsaws, thread cutters, milling machines, for the dimming of spotlights, infrared lamps and heaters or also for the individual control of the flow rate of pumps.

The speed regulator has a solid metal housing. The fine adjustment of the speed is done by an easy-to-use rotary control. Thanks to the mounting rail, it can be fixed anywhere in a stable way.

Delivery content

Speed regulator IVT DR-2000
Operating instructions in DE, GB, FR, NL

Technical Data

Input voltage	230 V AC, 50 Hz
Continuous power (max.)	2000 VA
Control range	10 V - 230 V AC
Control type	Phase angle control
Protection class	IP 40
Mains cable	1.35 m
Dimensions (L x W x H)	19.0 x 11.2 x 7.5 cm
Weight	1,05 kg

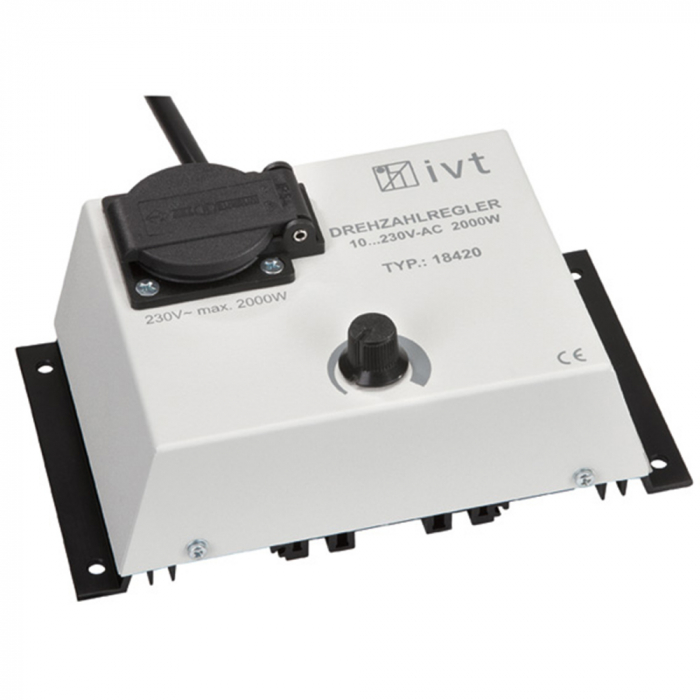

Speed Regulator IVT DR-2000

Speed regulator DR-2000 – speed infinitely variable and jerk-free adjustable
