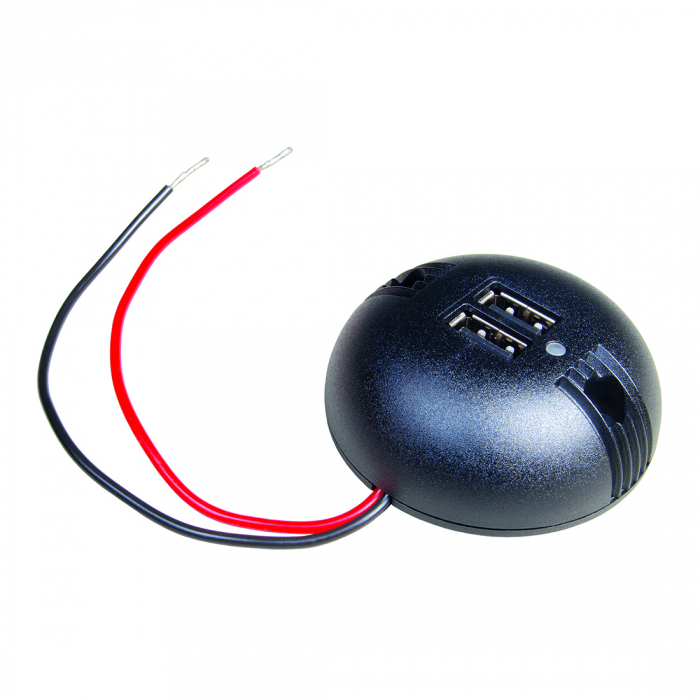

Surface-mounted power USB-A double socket PRO CAR 12 - 24 V, max. 2 x 2.5 A, with LED

Surface-mounted power USB-A double socket for vehicle electrical systems with 12 - 24 V

This USB-A double socket has an integrated voltage converter.

Both outputs are independent of each other and can be used individually or together. The USB double socket is suitable for charging and operating smartphones, navigation devices, tablets, digital cameras, MP3 players, photo cameras, etc.

The connection is made via a pre-assembled cable.

The most important features

• Suitable for consumers with USB-A charging connection
• Protection against short circuit, overload, overvoltage, reverse polarity and overtemperature
• Control LED to indicate the power supply
• Integrated voltage converter
• E1 approval, suitable for permanent installation in vehicles


Recommended use



This Surface-mounted power USB-A double socket is suitable for permanent installation in all vehicles with a 12 - 24 V system, e.g. cars, vans, motorhomes, caravans, boats, trucks, buses, construction machinery, etc.

Delivery content
Surface-mounted power USB-A double socket PRO CAR 12 - 24 V, max. 2 x 2.5 A, with LED



Technical Data

Input voltage (max.)	8 - 34 V DC
Output voltage	5 V DC to 2 x USB-A
Output current (max.)	5 A (2 x 2,5 A)
Current consumption (max.)	<3 mA (idle)
Overload protection	Yes
Overtemperature protection	Yes
Reverse polarity protection	Yes
E-approval	Yes
Housing	Makrolon (Polycarbonat)
Temperature load (max.)	135 °C
Connection cable	2 x 0.5 mm2, pre-assembled
Cable length	150 mm
Dimensions	Ø 59 mm Depth: 21.5 mm
