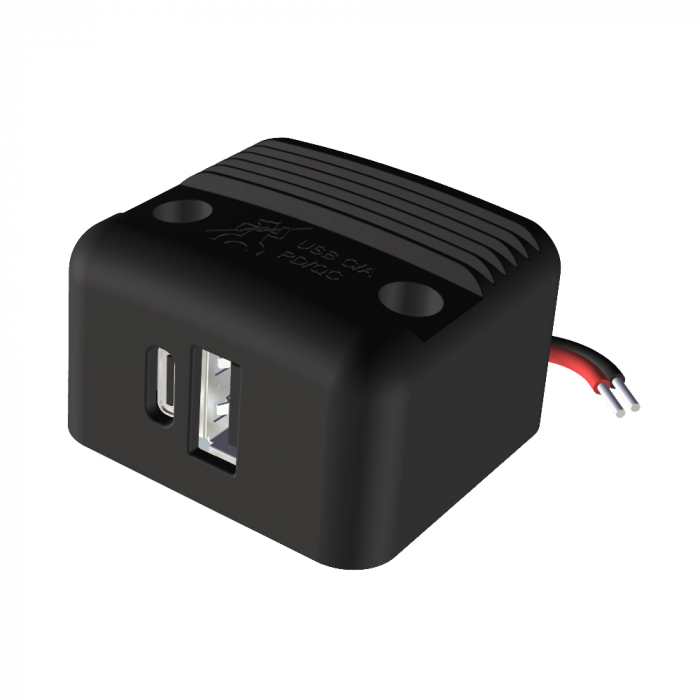

Surface-mounted power USB-C/A double socket PD/QC PRO CAR 12 - 24 V, max. USB-A/2.2 A - USB-C/3.0 A
Surface-mounted power USB-C/A double socket PD/QC PRO CAR 12 - 24 V, max. USB-A/2.2 A - USB-C/3.0 A

Surface-mounted power USB-C/A double socket PD/QC PRO CAR 12 - 24 V, max. USB-A/2.2 A - USB-C/3.0 A

  • Load capacity: USB-C max. 3 A, USB-A max. 2.2 A
  • E1 approval
  • Integrated voltage converter

Item no. 300037 | EAN 4030072300377

30,29 EUR

Become a sales partner
Request an offer
Description  |  Technical data

Surface-mounted power USB-C/A double socket for vehicle electrical systems with 12 - 24 V

This USB-C/A double socket has an integrated voltage converter and supports the fast charging methods Power Delivery (PD) (Port C), Quick Charge (QC) 2.0/3.0 (Port A + C) and Samsung AFC (Port A + C).

Both outputs are independent of each other and can be used individually or together.

The USB-C/A double socket is suitable for charging and operating smartphones, navigation devices, tablets, digital cameras, MP3 players, photo cameras, etc.

The connection is made via a pre-assembled cable.

The most important features
  • Suitable for consumers with USB-C/A charging connection
  • Protection against short circuit, overload, overvoltage, reverse polarity and overtemperature
  • Integrated voltage converter
  • E1 approval, suitable for permanent installation in vehicles

Recommended use

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for trucks Suitable for coaches Suitable for construction machinery Suitable for tractor Suitable for motorboat Suitable for sailing boat

This Surface-mounted power USB-C/A double socket PD/QC is suitable for permanent installation in all vehicles with a 12 - 24 V system, e.g. cars, vans, motorhomes, caravans, boats, trucks, coaches, construction machinery, etc.

Delivery content
Surface-mounted power USB-C/A double socket PD/QC PRO CAR 12 - 24 V, max. USB-A/2.2 A - USB-C/3.0 A

CE E-1

Technical Data

Input voltage (max.) 8 - 30 V DC
Output USB-A
Output voltage/
Output current at 12 V
(max.)		 5 V: 2.2 A
9 V: 2.2 A
12 V: 1.9 A
Output voltage/
Output current at 24 V
(max.)		 5 V: 2.2 A
9 V: 2.2 A
12 V: 1.9 A
15 V: 1.6 A
20 V: 1.2 A
Output USB-C
Output voltage/
Output current at 12 V
(max.)		 5 V: 3 A
9 V: 3 A
12 V: 2.5 A
Output voltage/
Output current at 24 V
(max.)		 5 V: 3 A
9 V: 3 A
12 V: 2.5 A
15 V: 2 A
20 V: 1.5 A
Charging protocol A socket Quick Charge (QC), PPS
Charging protocol C socket Power Delivery (PD), Quick Charge, PPS
Current consumption (max.) 5 mA (idle)
Overload protection Yes
Overtemperature protection Yes
Reverse polarity protection Yes
E-approval Yes
Housing ABS
Temperature load (max.) 110 °C
Connection cable 2 x 0,5 mm2, vorkonfektioniert
Cable length  150 mm
Dimensions 45 x 27,4 x 42,4 mm
.
