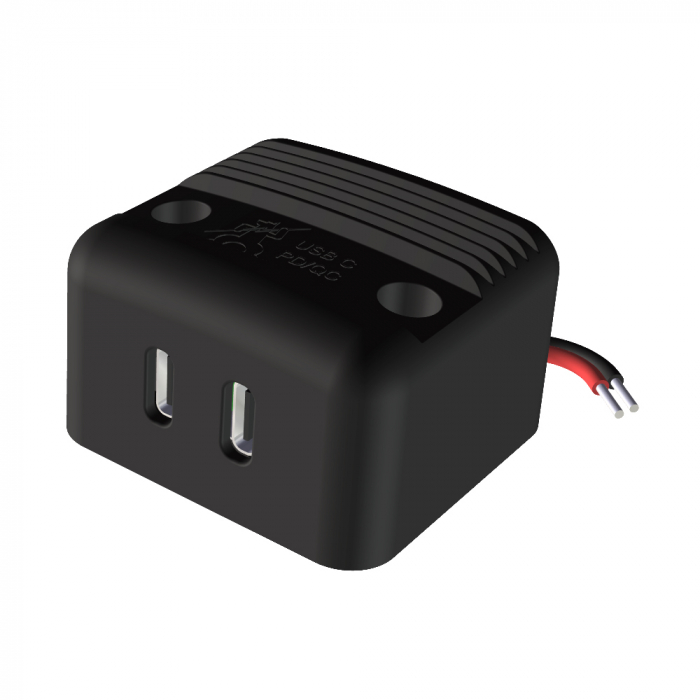

Surface-mounted power USB-C double socket PD/QC 12 - 24 V, USB-C1/max. 3 A - USB-C2/max. 3 A, with LED
Surface-mounted power USB-C double socket PD/QC 12 - 24 V, USB-C1/max. 3 A - USB-C2/max. 3 A, with LED

Surface-mounted power USB-C double socket PD/QC 12 - 24 V, USB-C1/max. 3 A - USB-C2/max. 3 A, with LED

  • Load capacity: max. 2 x 3 A
  • E1 approval
  • Supporting PD/QC and PPS fast charging process
  • Blue control LED

Item no. 300036 | EAN 4030072300360

37,75 EUR

VAT incl.

Become a sales partner
Request an offer

Surface-mounted power USB-C double socket for vehicle electrical systems with 12 - 24 V

This USB-C double socket has an integrated voltage converter and supports the fast charging methods Power Delivery (PD), Quick Charge (QC) and Programmable Power Supply (PPS).

Both outputs are independent of each other and can be used individually or together.

The USB-C double socket is suitable for charging and operating smartphones, navigation devices, tablets, digital cameras, MP3 players, photo cameras, etc.

The connection is made via a pre-assembled cable.

The most important features
  • Suitable for consumers with USB-C charging connection
  • Protection against short circuit, overload, overvoltage, reverse polarity and overtemperature
  • Integrated voltage converter
  • Control LED to indicate the power supply
  • E1 approval, suitable for permanent installation

Recommended use

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for trucks Suitable for coaches Suitable for construction machinery Suitable for tractor Suitable for motorboat Suitable for sailing boat

This Surface-mounted power USB-C double socket PD/QC is suitable for permanent installation in all vehicles with a 12 - 24 V system, e.g. cars, vans, motorhomes, caravans, boats, trucks, coaches, construction machinery, etc.

Delivery content
Surface-mounted power USB-C double socket PD/QC 12 - 24 V, max. USB-C1/3 A - USB-C2/3 A, with LED

CE E-1

Technical Data

Input voltage (max.) 8 - 30 V DC
Output voltage/
Output current at 12 V
(max.)
5 V: 3 A
9 V: 3 A
12 V: 2.5 A
Output voltage/
Output current at 24 V
(max.)
5 V: 3 A
9 V: 3 A
12 V: 2.5 A
15 V: 2 A
20 V: 1.5 A
Current consumption (max.) 5 mA (idle)
Overload protection Yes
Overtemperature protection Yes
Reverse polarity protection Yes
E-approval Yes
Housing ABS
Temperature load (max.) 110 °C
Connection cable 2 x 0,5 mm2, vorkonfektioniert
Cable length  150 mm
Dimensions 45 x 27,4 x 42,4 mm
.
