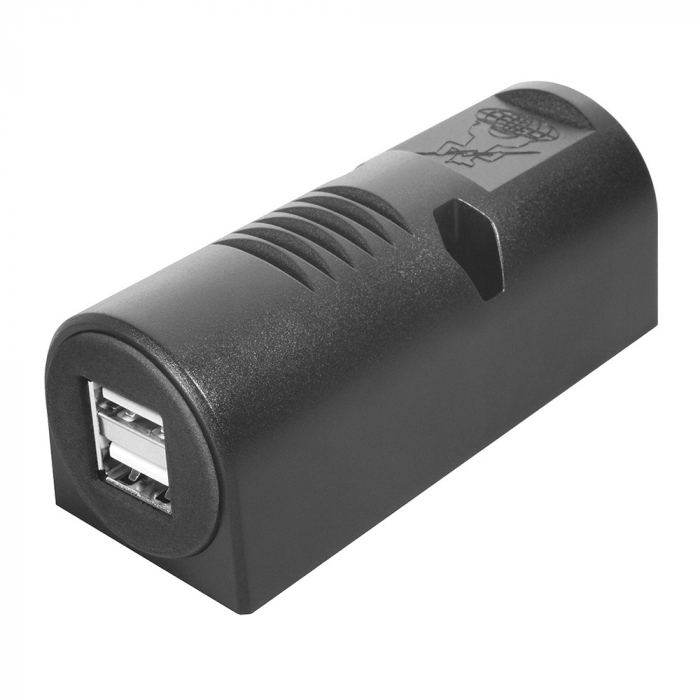

Surface-mounted power USB double socket PRO CAR 12

Surface-mounted power USB double socket for vehicle electrical systems with 12 – 24 V

The surface-mounted power USB double socket PRO CAR 12 – 24 V is suitable for charging and operating smartphones, navigation devices, e-book readers, digital cameras, mobile phones, MP3 players, cameras and tablets, as well as other electronic devices that can be charged via USB and require high charging current.

The connection is made via a prefabricated cable with open ends.
The mounting screws are included.

Delivery content

Surface-mounted power USB double socket PRO CAR 12 – 24 V
Mounting material
Instruction manual in DE

Recommended use

In vehicles with 12 – 24 V system, e.g. in cars, caravans, boats, trucks, etc.

Technical Data

Input voltage	8 V - 30 V
Output voltage	5 V
Output current, max.	5 A (2 x 2.5 A)
Output current, continuous	4.4 A (2 x 2.2 A)
Current consumption	< 5 mA (no load)
Overload protection	Yes
Overtemperature protection	Yes
Polarity protection	Yes
E-certification	Yes
Temperature load (max.)	135 °C
Connection cable	With open ends
Material	Polycarbonate
Dimensions (W x D x H)	34.1 x 85 x 32.8 mm
Weight	44 g
