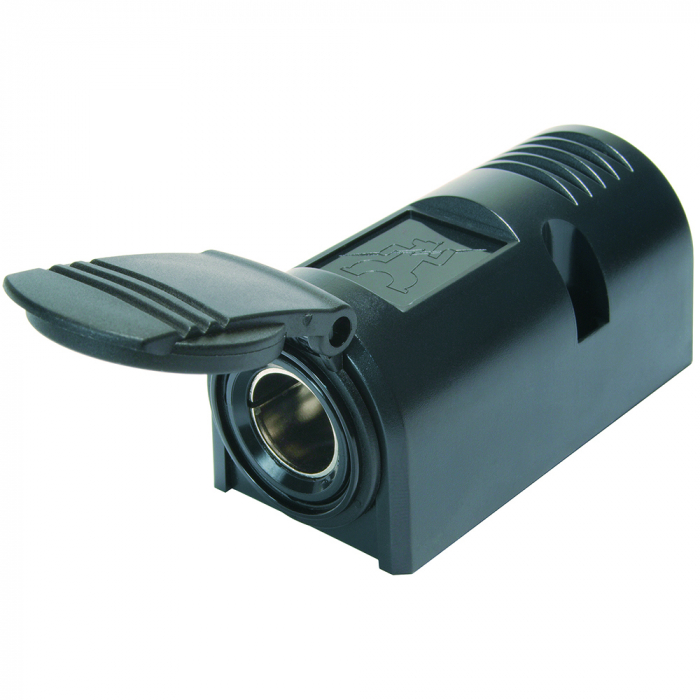

Surface-mounted power socket PRO CAR 12 - 24 V, max. 20 A, with cover

Surface-mounted power socket for universal plug
with cover for vehicle electrical systems with 12 - 24 V

This surface-mounted power socket is suitable for universal plugs (cigarette lighter).
The socket is connected via a 6.3 mm flat plug.


• 20 A with a cable cross-section of 2.5 mm²
• 16 A with a cable cross-section of 1.5 mm²


Recommended use




This Surface-mounted power socket is suitable for permanent installation in all vehicles with a 12 - 24 V system, e.g. for cars, vans, motorhomes, caravans, boats, trucks, buses, construction machinery, etc.

Delivery content

• Surface-mounted power socket PRO CAR 12 - 24 V, max. 20 A, with cover



Technical Data

Input voltage	max. 24 V DC
Current load (max.)	16 A | 1.5 mm2 20 A | 2.5 mm2
Housing	Polycarbonate, nickel-plated surface
Temperature range	-40 °C to +80 °C
Connection	6.3 mm blade terminal connection for fully insulated plugs
Cable cross-section	suitable for 1.5 to 2.5 mm2
Dimensions	Ø 31 mm Height: 35 mm Depth: 67 mm
