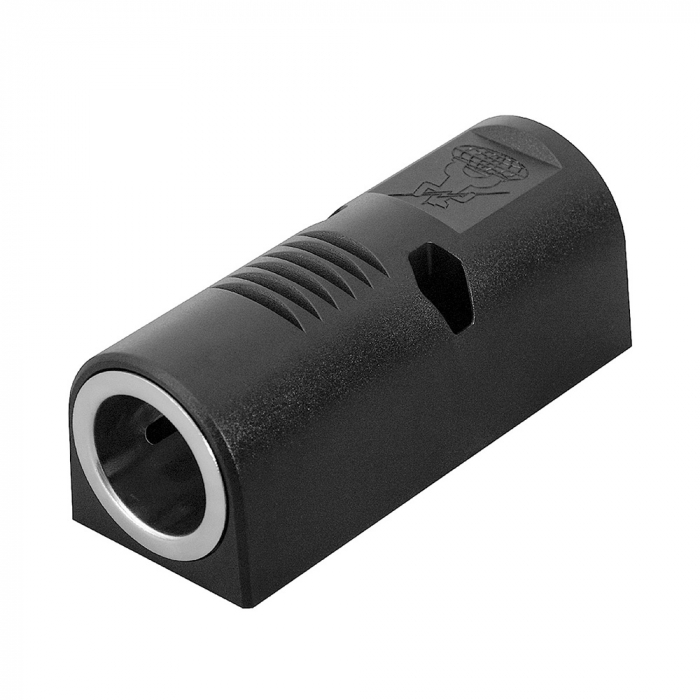

Surface-mounted power socket PRO CAR 12 – 24 V, max. 20 A

Surface-mounted power socket for vehicle electrical systems with 12 – 24 V

Load capacity
20 A for a cable cross-section of 2.5 mm²
16 A with a cable cross-section of 1.5 mm²

Suitable for universal plug (cigarette lighter).
The connection is made via a 6.3 mm flat connector.
Mounting screws are included.



Delivery content

• Surface-mounted power socket PRO CAR 12 – 24 V, max. 20 A
• Mounting material

Recommended use


In vehicles with 12 – 24 V-system, e.g. in cars, caravans, boats, trucks, etc.

Technical Data

Input voltage (max.)	24 V
Current load (max.)	16 A/1.5 mm2 20 A/2.5 mm2
Temperature load (max.)	135 °C
Connection cable	With 6.3 mm flat connector
Diameter socket	21 mm
Material	Polycarbonate
Dimensions (W x D x H)	34.2 x 85 x 32.8 mm
Weight	45 g
