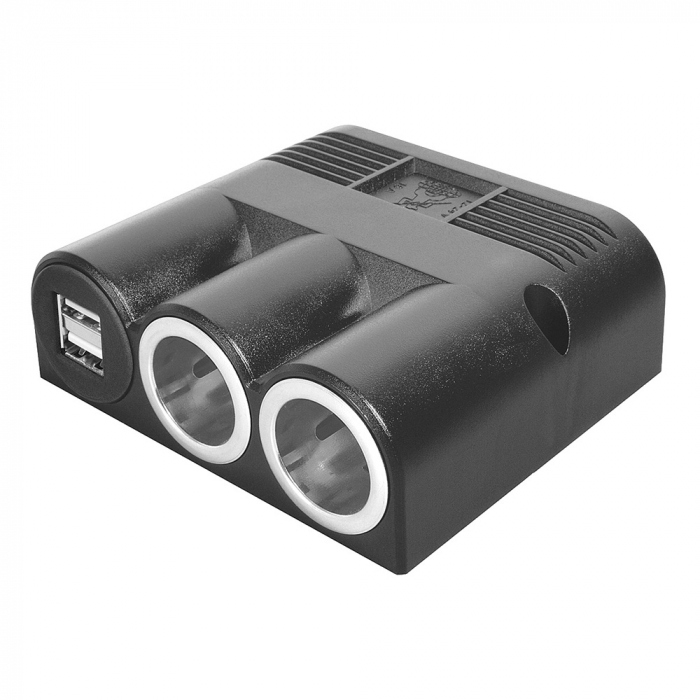

Surface-mounted triple socket PRO CAR with USB double socket

Surface-mounted triple socket for vehicle electrical systems with 12 – 24 V with two universal and USB sockets each

The surface-mounted triple socket PRO CAR with USB double socket includes two power sockets for operating cool boxes or devices that can be operated with 12 – 24 V.

The USB double socket is suitable for charging and operating smartphones, navigation devices, e-book readers, digital cameras, mobile phones, MP3 players, cameras and tablets, as well as other electronic devices that require high charging current.

The connection is made via a 15 cm prefabricated cable.
The mounting screws are included.



Delivery content

• Surface-mounted triple socket PRO CAR with USB double socket
• Mounting material
• Instruction manual in DE

Recommended use


In vehicles with 12 – 24 V-system, in cars, caravans, boats, trucks, etc.

Technical Data

Universal sockets
Input voltage	8 V - 30 V
Current load 12 V (max.)	20 A/2.5 mm2 14 A/1.5 mm2
Current load 24 V (max.)	10 A/1.5 mm2
Diameter socket	21 mm
USB sockets
Input voltage	8 V - 30 V
Output voltage	5 V
Output current, max.	5 A (2 x 2.5 A)
Output current, continuous	4.4 A (2 x 2.2 A)
General
Current consumption	< 5 mA (no load)
Overload protection	Yes
Overtemperature protection	Yes
Polarity protection	Yes
E-certification	Yes
Temperature load (max.)	135 °C
Connection cable	With open ends
Material	Polycarbonate
Dimensions (W x D x H)	95 x 85 x 32.8 mm
Weight	123 g
