Switching Station IVT US-12N, 230 V AC, 12 A, 2700 VA

Switching Station IVT US-12N, 230 V AC, 12 A, 2700 VA

Suitable for sine wave inverters up to max. 2700 VA
Microprocessor controlled priority switching
Freely selectable mains priority switching
Switches reliably between two 230 V AC power sources
Precise switching thanks to high quality relays
Protected against overload and short circuit
Housing protection type IP 55

Item no. 400033 | EAN 4030072400336

87,59 EUR

VAT incl.

Become a sales partner
Request an offer

Secured power supply thanks to precise switching

The Switching Station enables a failure-free supply of 230 V AC electrical consumers from 2 different voltage sources, for example from an inverter and the regular 230 V mains net. The maximum connected load is 2700 VA.

With the priority switching you can determine which voltage source is preferred – if this voltage source is cut off, the Switching Station will automatically switch to the substitute voltage source. This way, your devices will keep running despite a power outage or low batteries.

The high quality relays assure a precise switching threshold. With this, your inverter is well protected against the reverse feeding from external voltage.

Important characteristics and features

Connection mains priority switching

Connection variant 1: Mains priority switching

The 230 V AC mains net is connected to the input AC2 (higher priority).

This means the battery will be preserved while the inverter will be protected against reverse feeding
Only when AC2 is voltage-free, the input AC1 switches on the power supply via battery and inverter.

Connection variant 1: Mains priority switching

The 230 V AC mains net is connected to the input AC2 (higher priority).

This means the battery will be preserved while the inverter will be protected against reverse feeding
Only when AC2 is voltage-free, the input AC1 switches on the power supply via battery and inverter.

Connection inverter priority switching

Connection variant 2: Inverter priority switching

Graphic inverter priority switching

The inverter is connected to the input AC2 (higher priority).

This means the power will primarily be gathered from the battery via the inverter (for example as part of a solar isle system).
Only when the inverter shuts off due to the deep discharge protection, the 230 V AC mains net will be turned on by the input AC1.

Connection variant 2: Inverter priority switching

Graphic inverter priority switching

The inverter is connected to the input AC2 (higher priority).

This means the power will primarily be gathered from the battery via the inverter (for example as part of a solar isle system).
Only when the inverter shuts off due to the deep discharge protection, the 230 V AC mains net will be turned on by the input AC1.

3 year manufacturer warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

Delivery content

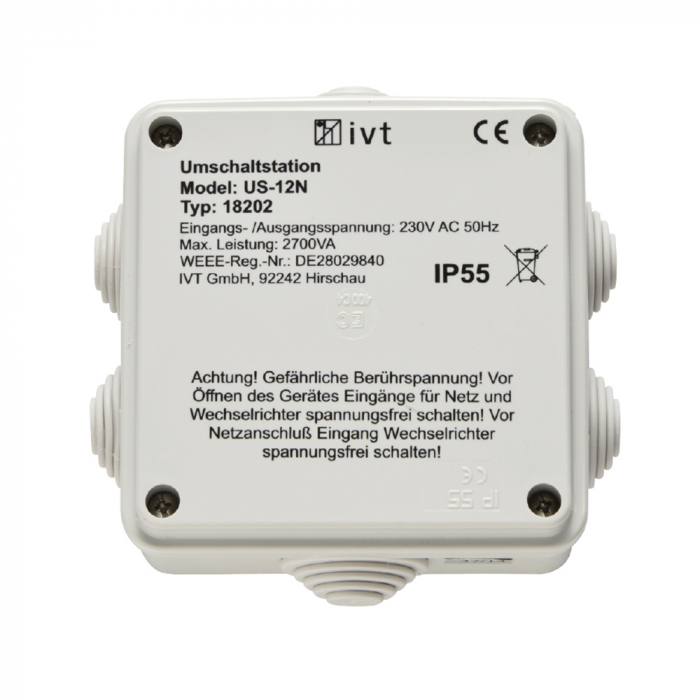

Switching Station US-12N
Grounding terminal
Instruction manual DE, EN, FR, NL

Recommended use

Suitable for solar isle systems, passenger cars, service and commercial vehicles, mobile homes, caravan, motorboats, sailboats and much more

Technical Data

Input voltage	230 V AC, 50/60 Hz
Input current (max.)	12 A
Output voltage	230 V AC, 50/60 Hz
Power (max.)	2700 VA
Switching time	1 - 2 seconds
Fuse	T 15 A / 250 V
Protection	overload, short circuit, reverse feeding
Housing	plastic
Protection type	IP 55
Input	Screw terminals, Connection terminal
Dimensions (L x W x H)	120 x 120 x 58 mm
Weight	250 g
