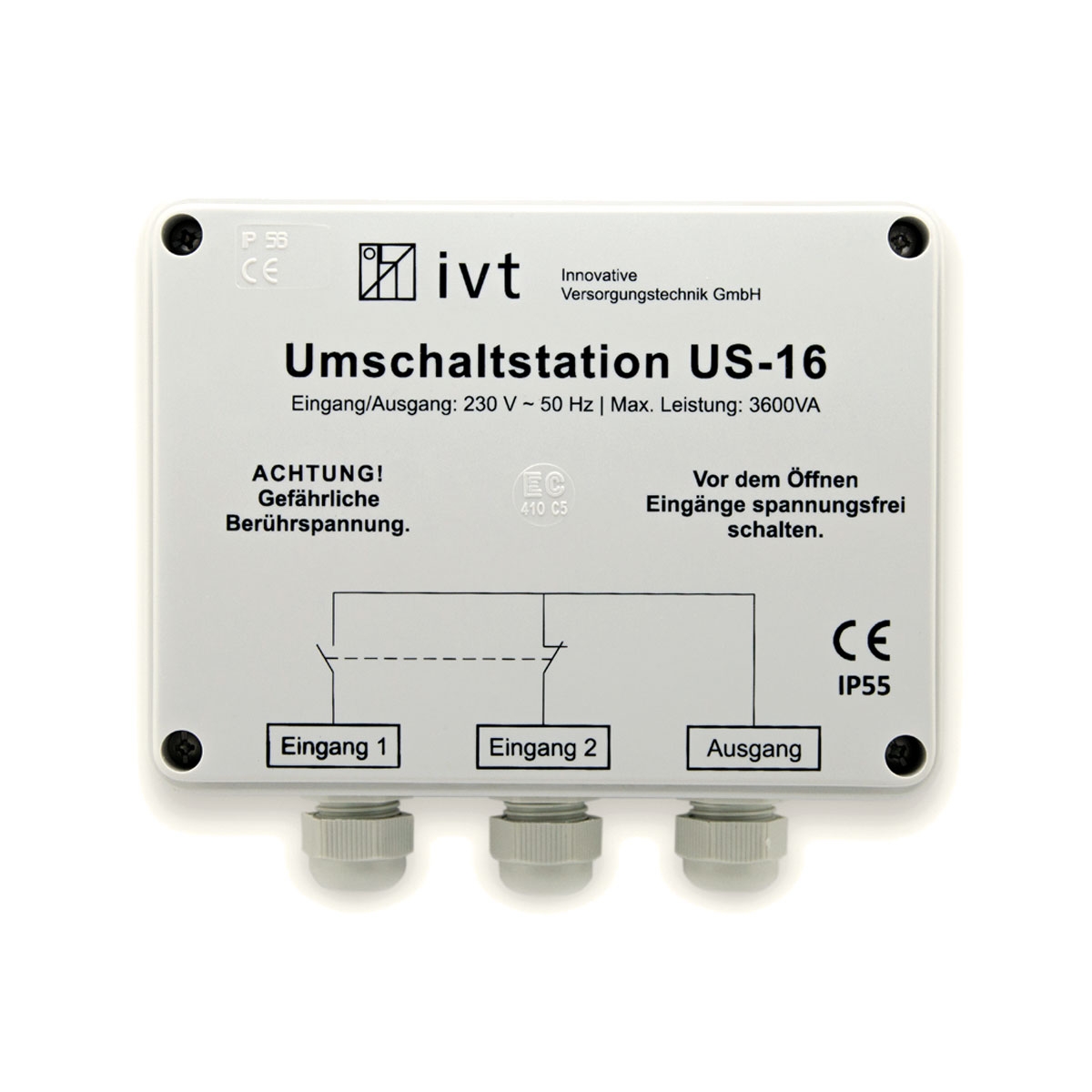

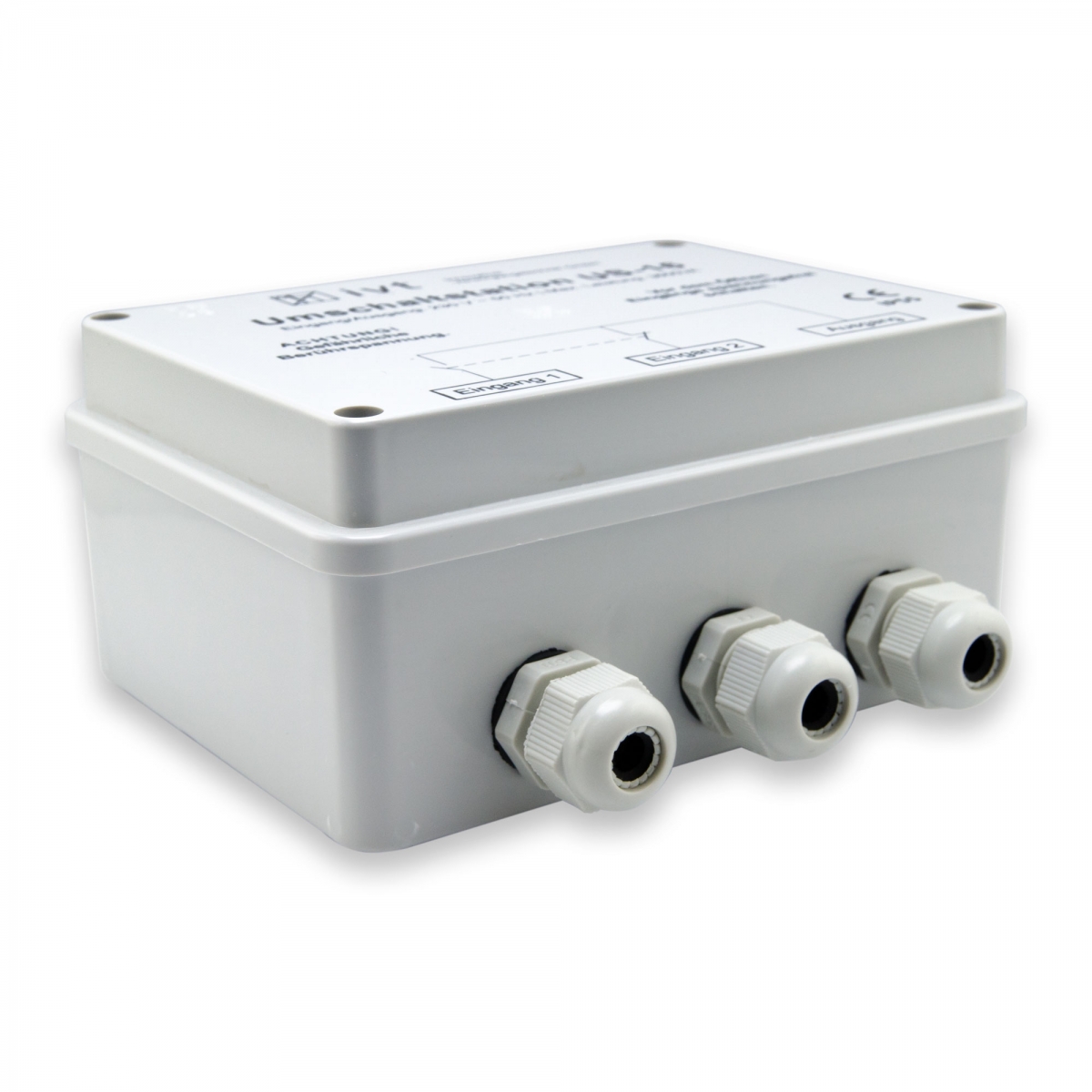

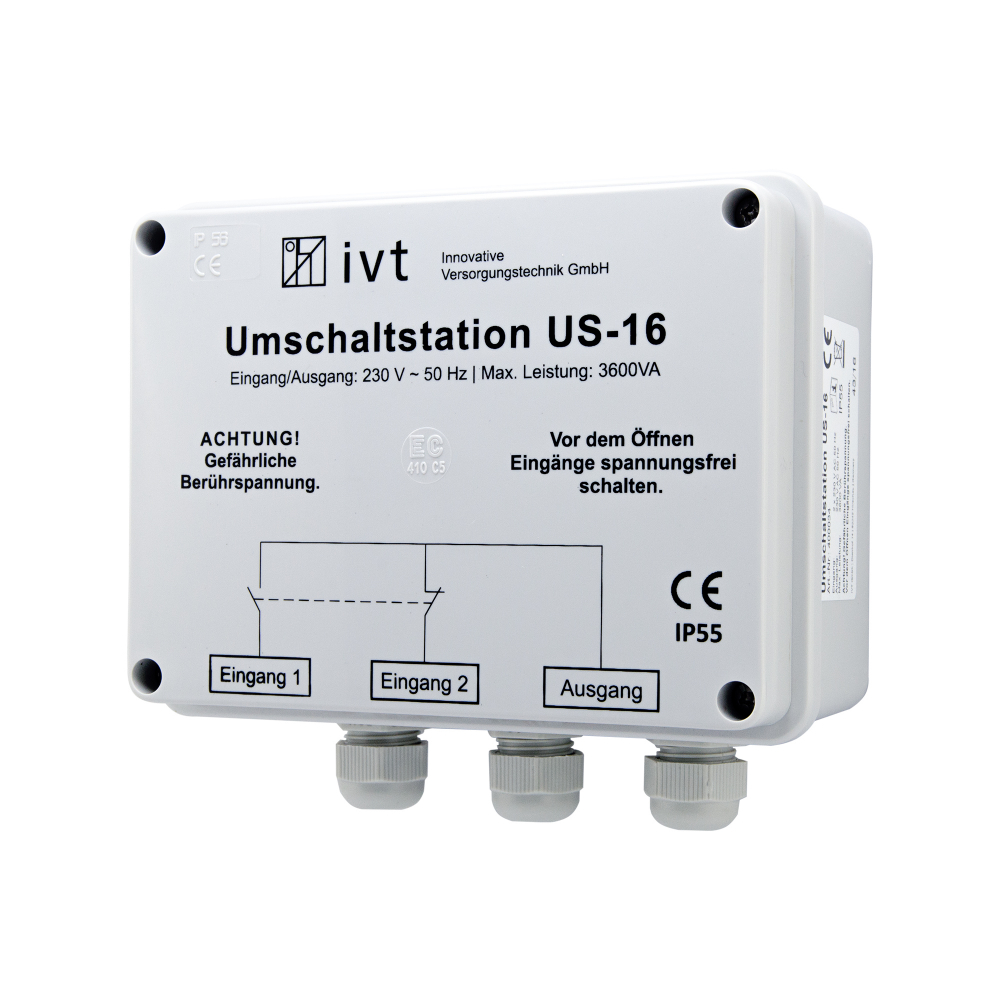

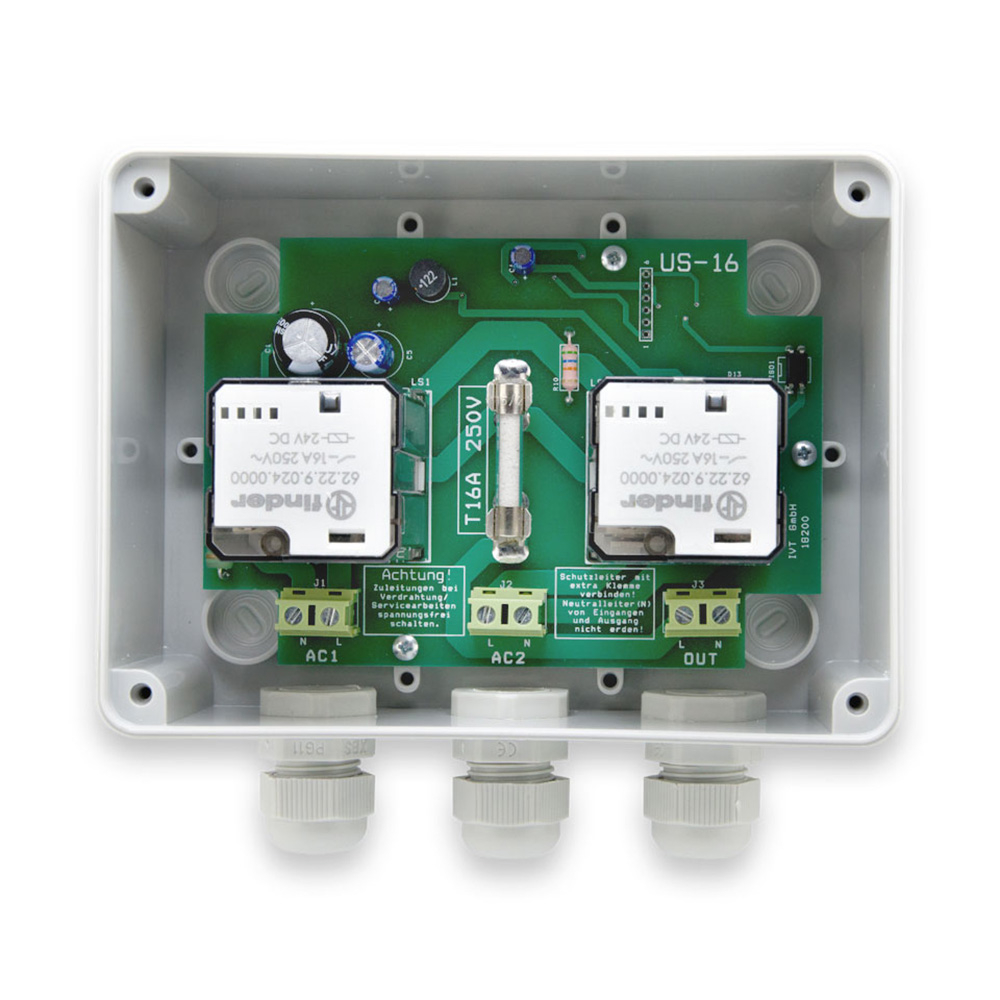

Switching Station IVT US-16, 230 V AC, 16 A, 3600 VA

Switching Station IVT US-16, 230 V AC, 16 A, 3600 VA

  • Suitable for sine wave inverters up to max. 3600 VA
  • Microprocessor controlled priority switching
  • Freely selectable mains priority switching
  • Switches reliably between two 230 V AC power sources
  • Precise switching thanks to high quality relays
  • Protected against overload and short circuit
  • Housing protection type IP 55

Item no. 400034 | EAN 4030072400039

104,85 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Features & Functions  |  Technical data  |  Compatible with  |  Variants  |  Downloads

Secured power supply thanks to precise switching

The Switching Station enables a failure-free supply of 230 V AC electrical consumers from 2 different voltage sources, for example from an inverter and the regular 230 V mains net. The maximum connected load is 3600 VA.

With the priority switching you can determine which voltage source is preferred – if this voltage source is cut off, the Switching Station will automatically switch to the substitute voltage source. This way, your devices will keep running despite a power outage or low batteries.

The high quality relays assure a precise switching threshold. With this, your inverter is well protected against the reverse feeding from external voltage.

Microprocessor controlled Protected against overload, short circuit and reverse feeding Protection class IP 55 CE 3 years warranty Made in Europe

Important characteristics and features

Connection mains priority switching

+

Connection variant 1: Mains priority switching


Graphic mains priority switching

The 230 V AC mains net is connected to the input AC2 (higher priority).
  • This means the battery will be preserved while the inverter will be protected against reverse feeding
  • Only when AC2 is voltage-free, the input AC1 switches on the power supply via battery and inverter.

Connection variant 1: Mains priority switching


Graphic mains priority switching

The 230 V AC mains net is connected to the input AC2 (higher priority).
  • This means the battery will be preserved while the inverter will be protected against reverse feeding
  • Only when AC2 is voltage-free, the input AC1 switches on the power supply via battery and inverter.

Connection inverter priority switching

+
Connection variant 2: Inverter priority switching

Graphic inverter priority switching

The inverter is connected to the input AC2 (higher priority).
  • This means the power will primarily be gathered from the battery via the inverter (for example as part of a solar isle system).
  • Only when the inverter shuts off due to the deep discharge protection, the 230 V AC mains net will be turned on by the input AC1.
Connection variant 2: Inverter priority switching

Graphic inverter priority switching

The inverter is connected to the input AC2 (higher priority).
  • This means the power will primarily be gathered from the battery via the inverter (for example as part of a solar isle system).
  • Only when the inverter shuts off due to the deep discharge protection, the 230 V AC mains net will be turned on by the input AC1.

3 year manufacturer warranty

+
3 years warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

Delivery content

+
  • Switching Station US-16
  • Terminal for ground connection
  • Instruction manual DE, EN, FR, NL

Recommended use

Suitable for solar isle systems, passenger cars, service and commercial vehicles, mobile homes, caravan, motorboats, sailboats and much more

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for motorboat Suitable for sailing boat Suitable for solar system

Technical Data

Input voltage 230 V AC, 50/60 Hz
Input current (max.) 16 A
Output voltage 230 V AC, 50/60 Hz
Power (max.) 3600 VA
Switching time 0.5 seconds
Fuse T 16 A / 250 V
Protection overload, short circuit,
reverse feeding
Housing plastic
Protection type IP 55
Input Screw terminals,
Connection terminal
Dimensions (L x W x H)     160 x 145 x 77 mm
Weight 450 g

Compatible with

Digital Sine Wave Inverter IVT DSW-300, 12 V, 300 W

Item no. 430101

319,00 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-300, 24 V, 300 W

Item no. 430102

318,86 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-600, 12 V, 600 W

Item no. 430103

425,00 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-600, 24 V, 600 W

Item no. 430104

425,85 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-1200, 12 V, 1200 W

Item no. 430105

598,00 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-1200, 24 V, 1200 W

Item no. 430106

597,06 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-2000, 12 V, 2000 W

Item no. 430107

899,00 EUR
VAT incl.

Digital Sine Wave Inverter IVT DSW-2000, 24 V, 2000 W

Item no. 430108

908,43 EUR
VAT incl.

Alternative product variants

Switching Station IVT US-12N, 230 V AC, 12 A, 2700 VA

Item no. 400033

85,07 EUR
VAT incl.

Downloads

Operating instructions Switching Station IVT US-16
330.8 KB
Download
.
