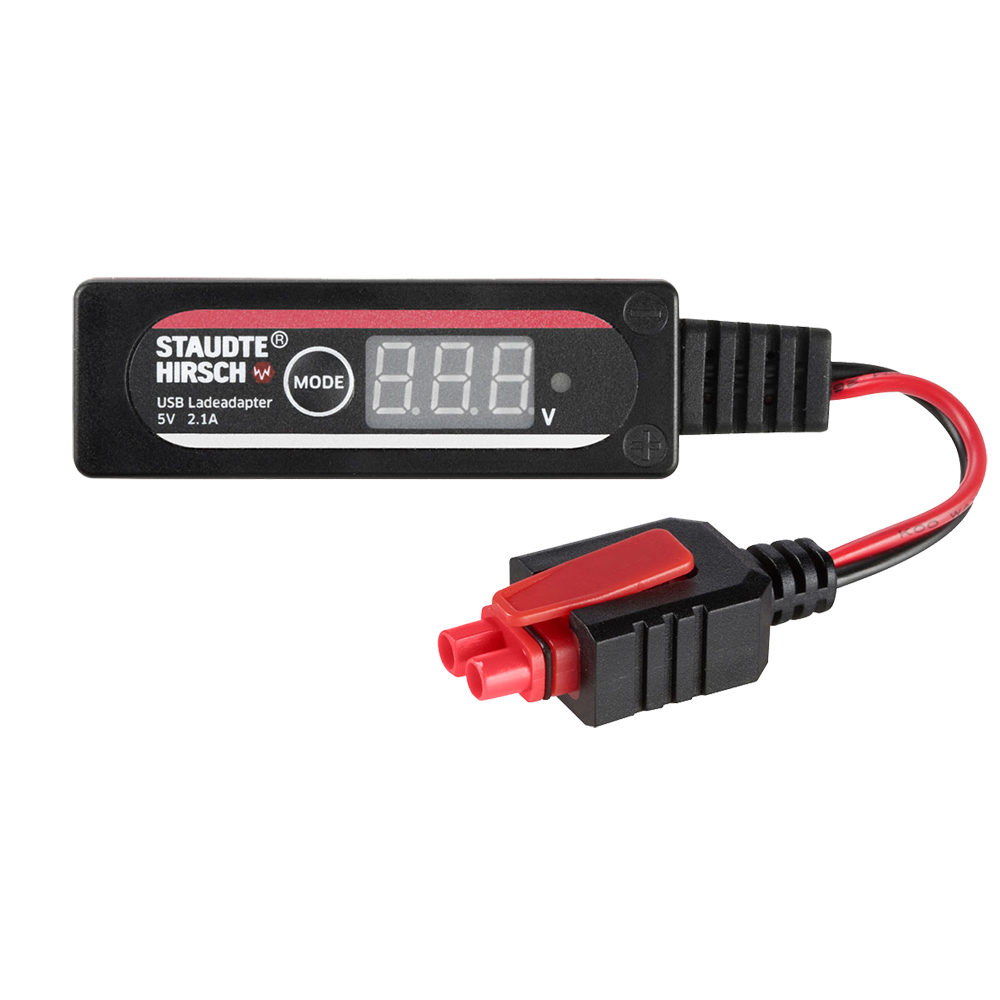

USB Charging Adapter Staudte Hirsch SH-3.180, 5 V, 2.1 A

Suitable for consumers with USB charging connection
Charging via 12 V on-board systems
Integrated battery diagnosis
Fast charging thanks to a high charging current of 2.1 A
Automatic discharge protection
Clear display elements and simple operation
Small, light, handy and easy to install
Equipped with quick-contact plug and dust protection

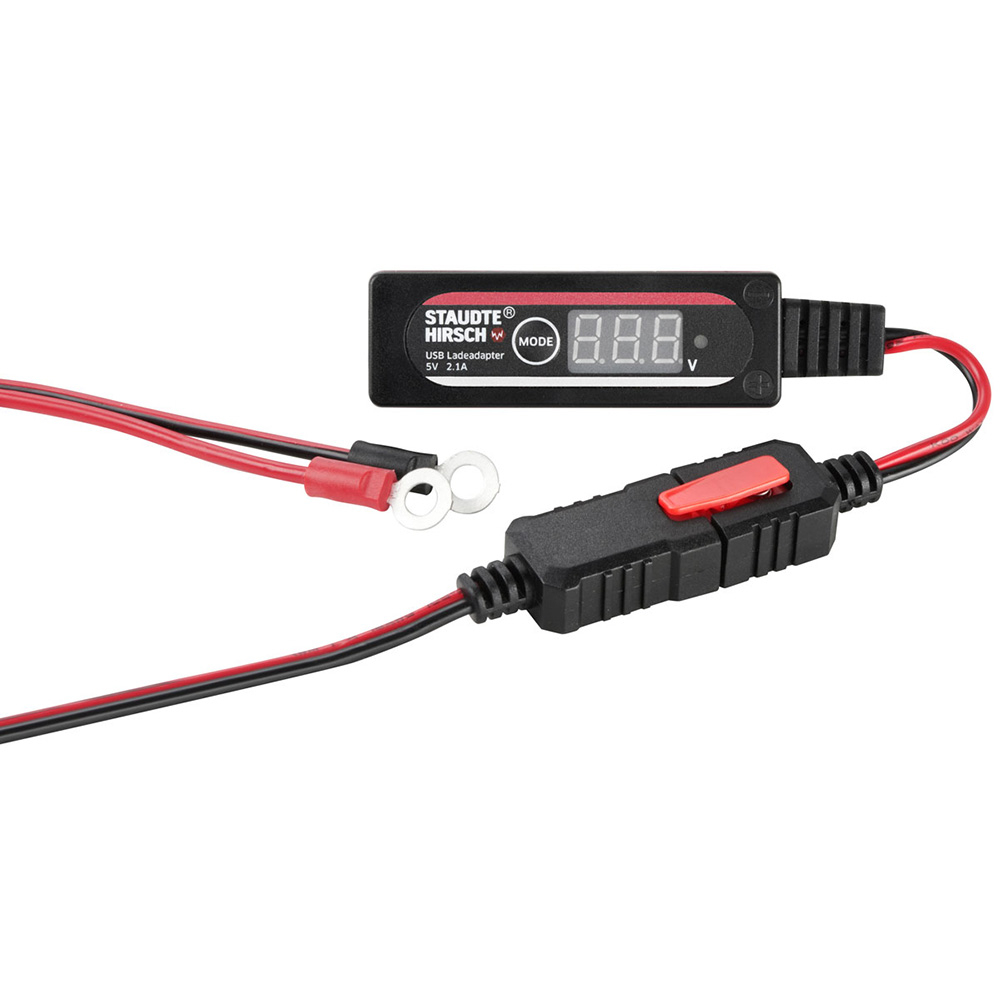

Incl. adapter cable with eyelet rings

Item no. 331800 | EAN 4030072331807

24,50 EUR

VAT incl.

Become a sales partner

Request an offer

USB charging adapter SH-3.180 – Handy charging and diagnosis option for on the go

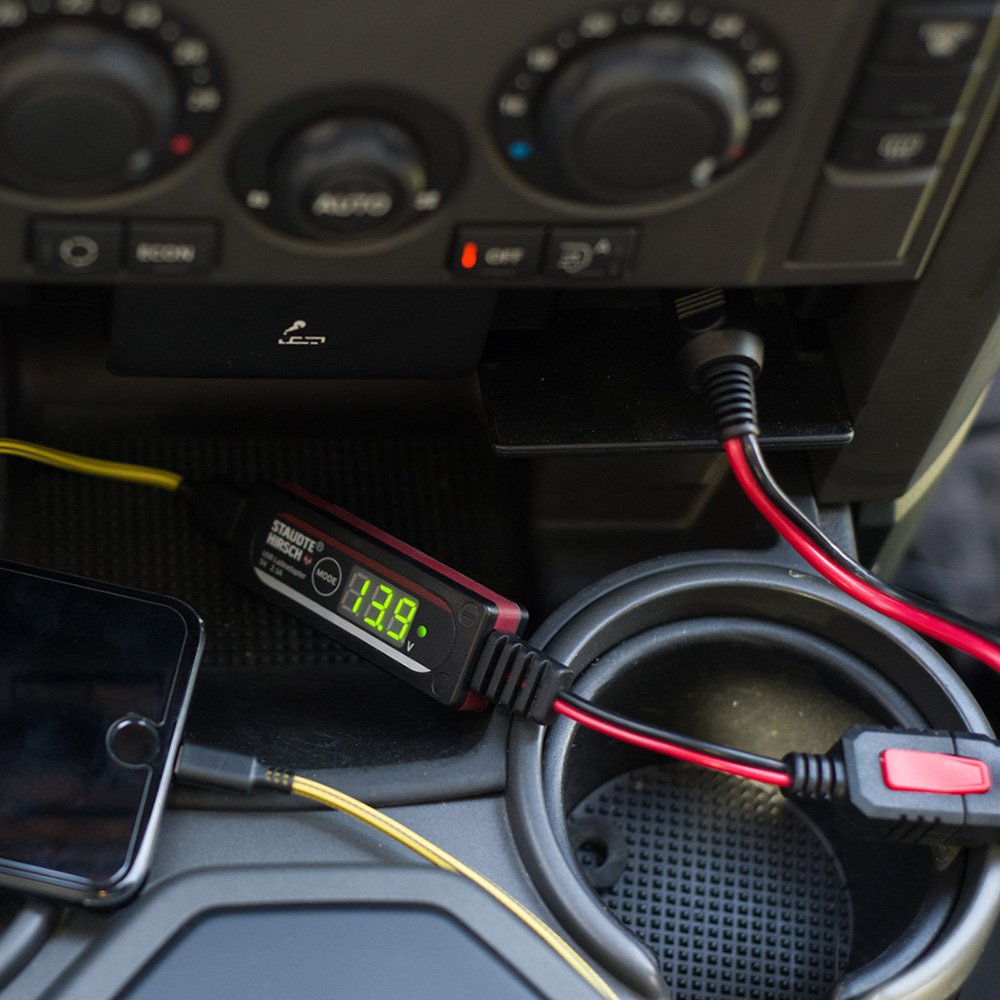

The Staudte Hirsch USB charging adapter SH-3.180 is used to charge mobile devices with USB connection via a 12 V on-board battery. So you always have a charging option for consumers such as cell phones, navigation devices, helmet intercoms and much more. Due to the high charging current of 2.1 A, the consumer is charged up to 4 times faster than with conventional USB plug adapters.

The integrated and fully automatic discharge protection prevents the connected on-board battery from discharging. If the input voltage falls below 11.8 V, the USB charging adapter switches off. This ensures that there is always enough energy left in the battery to start your vehicle.

Moreover, you can use the battery diagnosis to check the current voltage value of the on-board battery on the LED display at any time.

Important characteristics and features

Features & Functions

Clear LED display

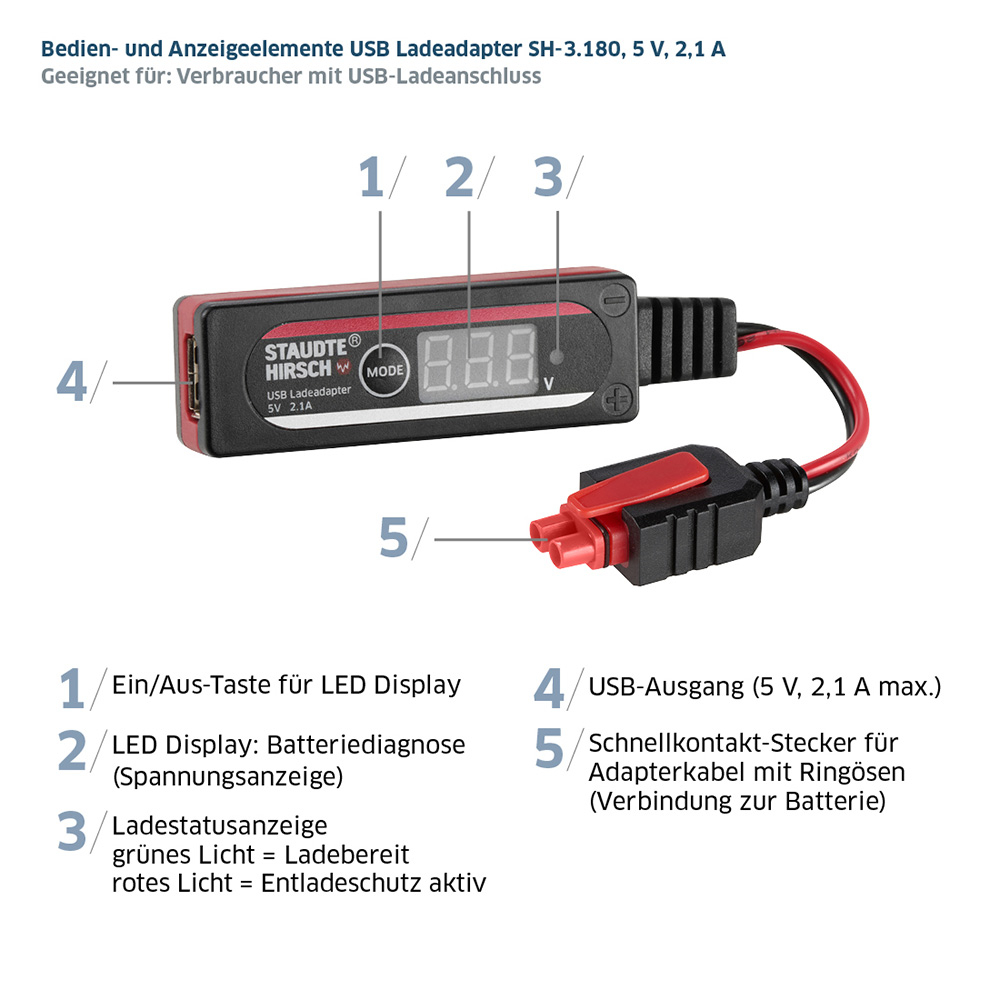

USB Charging Adapter SH-3.180: Graphic LED display

Clear LED display
1 On/off button for LED display
2 LED display: battery diagnosis (voltage display)
3 Charging status display:
   green light = ready to charge
   red light = discharge protection active

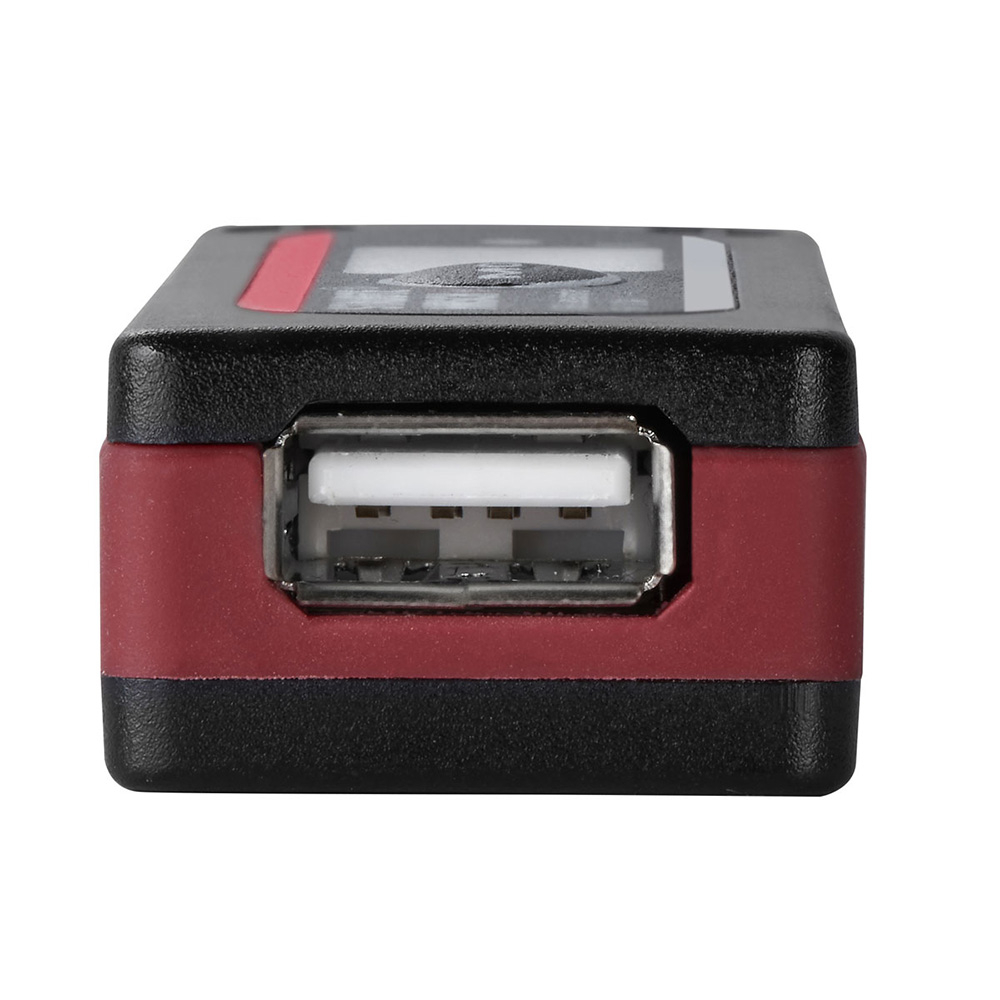

4 USB output
5 Quick-contact plug for adapter cable with ring lugs
   (connection to the battery)

The clearly arranged LED display gives you information about the operating status and the charging status of the battery at any time. Possible errors are indicated visually.

Robust housing (IP 20)

Thanks to its robust housing (IP 20), the USB charging adapter can be used safely and reliably.

Included charging adapters – Conveniently connect and exchange

Charging adapters – Connect and exchange easily

The 2-piece, water-protected (IP 44) adapter cable set, which is included in the delivery content, allows for a versatile and flexible use

Quick contact plug: connection between charger and adapter cable

Quick contact plug: connection between charger and adapter cable

Simply connect and exchange
Thanks to the quick-contact plug, the required adapter cable can simply be connected to the charger cable and, if necessary, replaced with another one.

Accessory Adapter cable with battery clamps

Adapter cable with battery clamps
By means of the completely isolated batteryclamps, the charger can be quickly and safely connected to or disconnected from the battery.
Product no. 911000.K
To the product >

Accessory Adapter cable with eyelet rings

Adapter cable with eyelet rings
It can be permanently connected to hard-to-reach batteries. Advantage: The eyelets only have to be fixed to the battery once. After that, the charger can be connected to e.g. the motorcycle with little effort using the quick-contact plug. (Diameter eyelet rings outside 12 mm, inside 6.5 mm).
Product no. 911000.O
To the product >

These and other adapter cables can also be ordered separately

	3-piece adapter cable set Item no. 911000.A To the set >
	Adapter cable with battery clamps Item no. 911000.K To the product >
	Adapter cable with eyelet rings Item no. 911000.O To the product >
	Adapter cable with 12 V plug Item no. 911000.Z To the product >
	Adapter cable with open ends for retrofitting Item no. 911000.S To the product >

3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

USB Charging Adapter Staudte Hirsch SH-3.180, 5 V, 2.1 A
Adapter cable with eyelet rings
Operating instructions DE, GB

Recommended use USB Adapter

Ride-on mower, quad bike, motocycle, motor scooter, moped, electric wheelchair, golf trolley, snowmobile, 12 V solar system and many more.

Technical Data

Input
Operation voltage	11.8 - 17.5 V DC
Power consumption	10.5 VA at max. charging current 0.5 VA at standby
Output
Charging current (max.)	2.1 A
Output voltage	5 V DC
USB output	Type A
General
IP protection	IP 20
Temperature range	0 - 40 °C
Material	ABS and TPR
Cable length	60 cm (incl. adapter cable) 13 cm (without adapter cable)

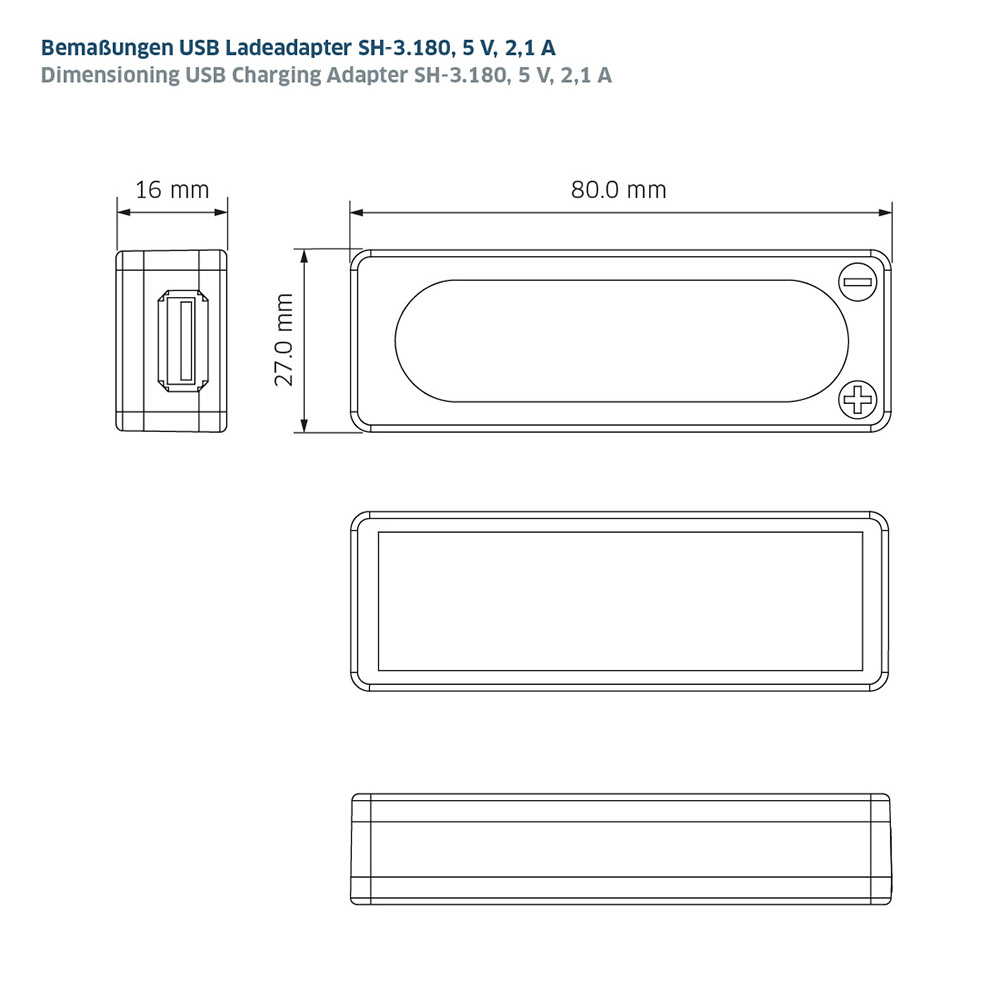

Dimensions (L x W x H)	80 x 27 x 16 mm
Weight	87 g (with adapter cable) 47 g (without adapter cable)
