Waterproof LED Touch-switch Lamp IVT for 12 V/24 V

Waterproof and compact –
LED lamp with integrated touch switch

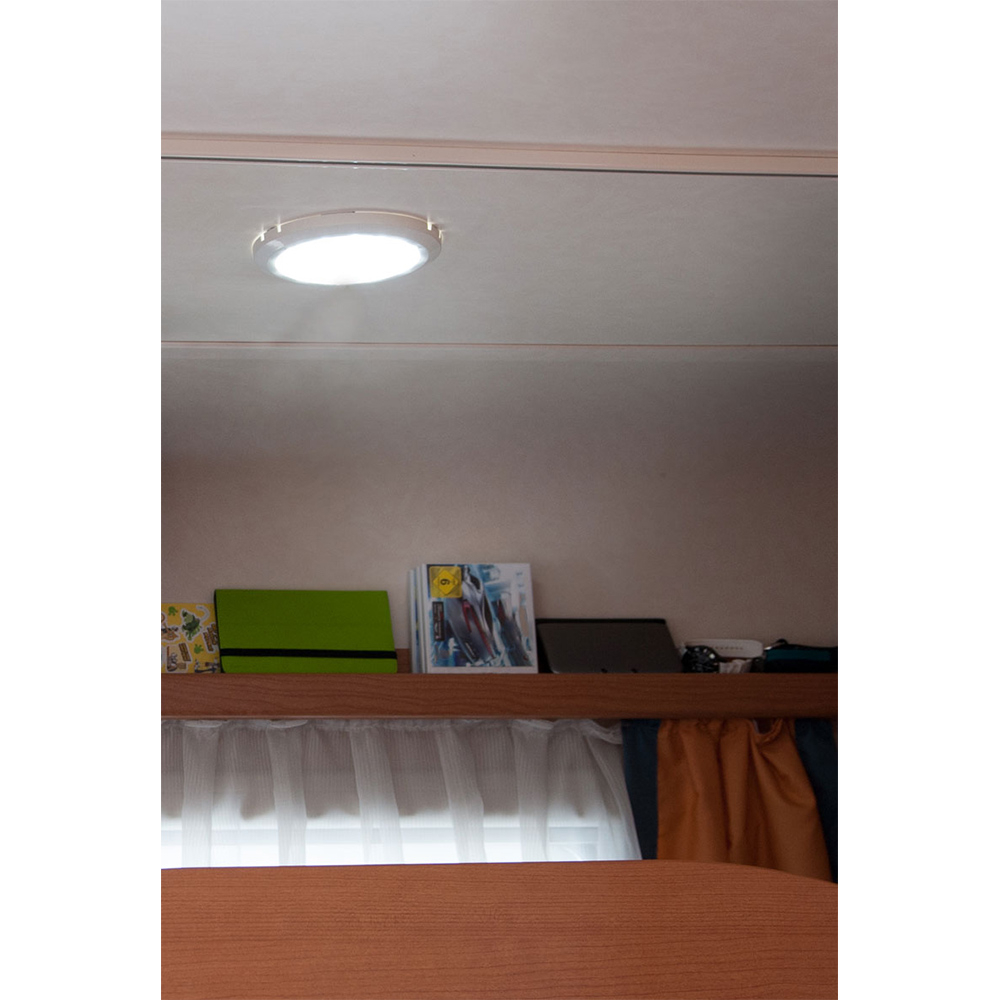

This extremely sturdy and versatile touch-switch light is perfectly suitable for applications in 12 V systems as well as in 24 V systems. The LED lamp is compact, extremely slim, light in weight, space-saving and due to the three pre-drilled holes easy to install. The outer plastic frame is removable. Thus, the lamp may be used as both, recessed light and surface-mounted light.

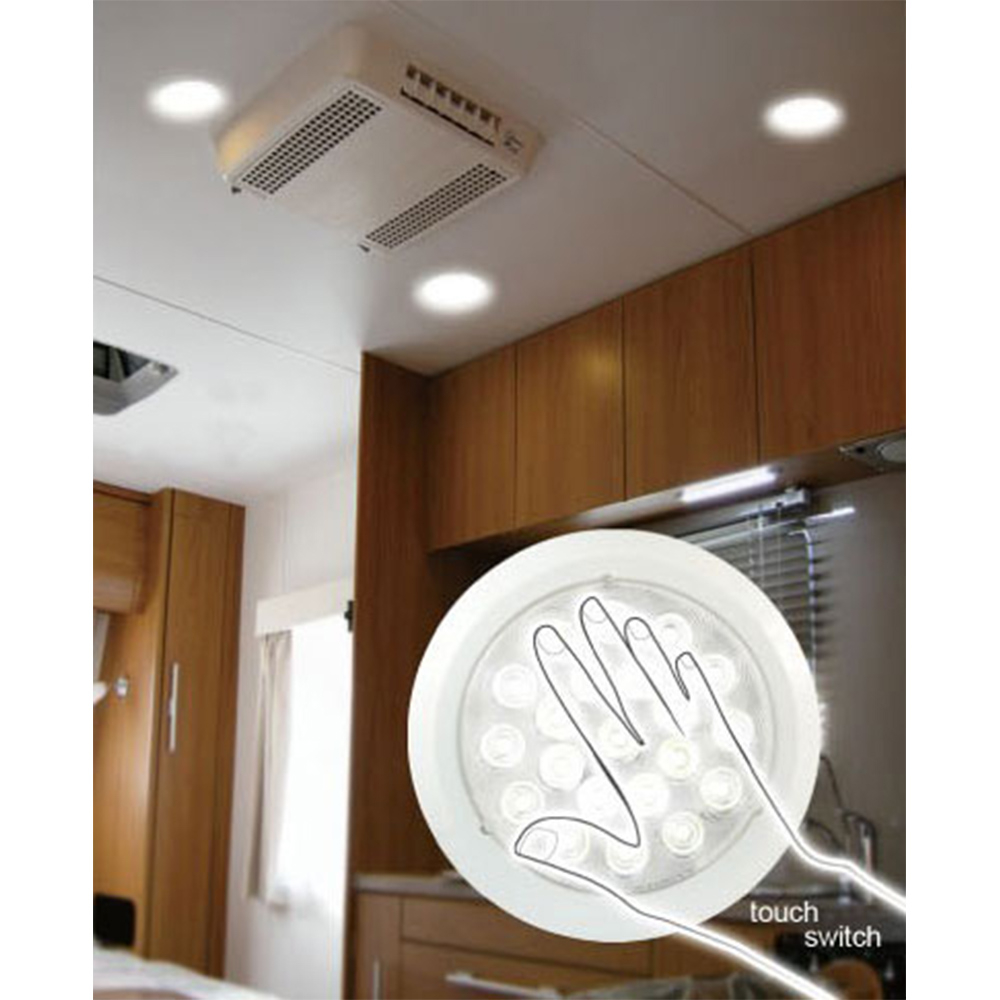

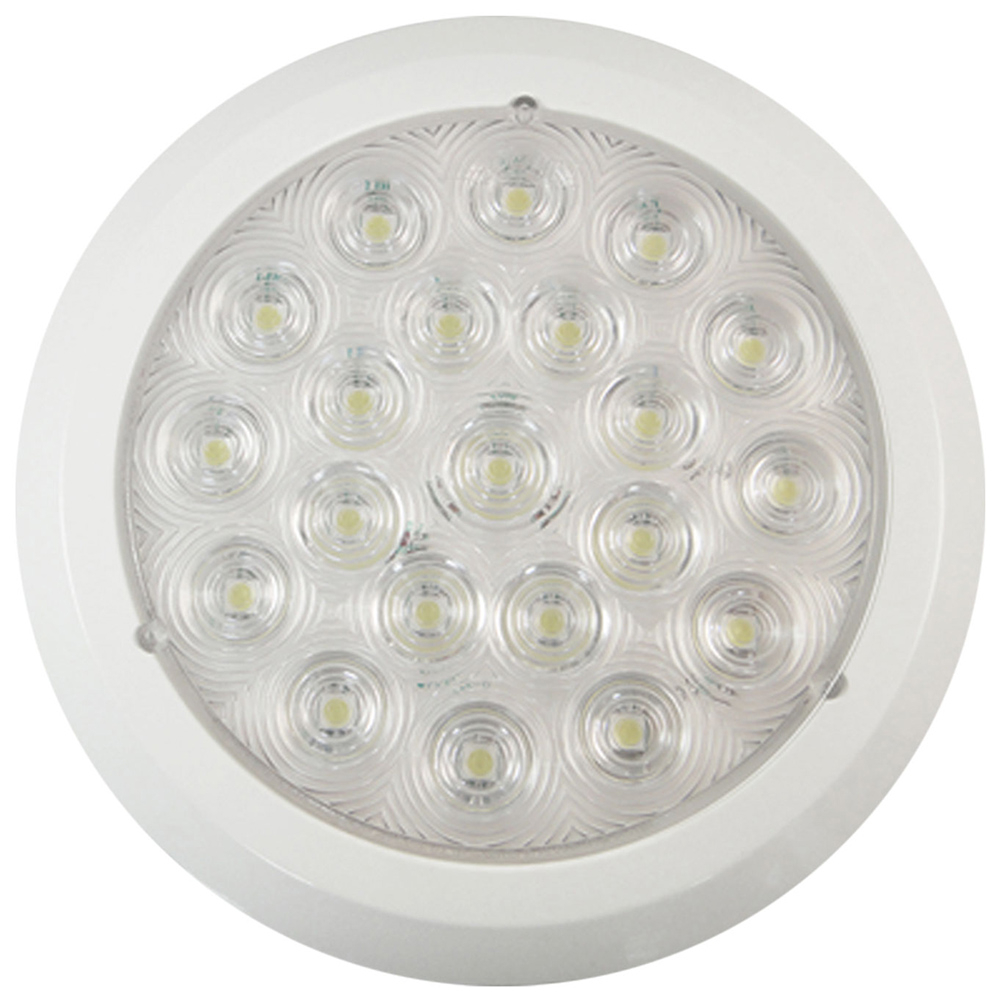

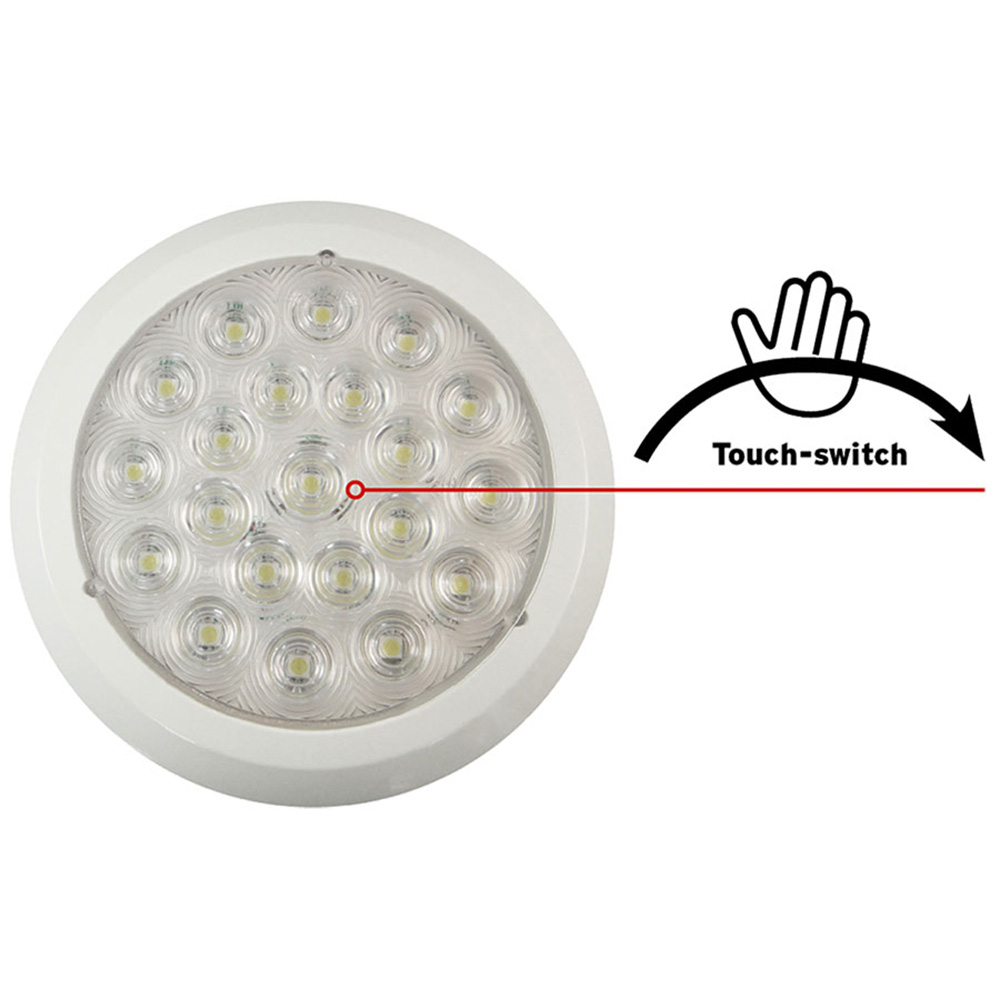

Its 21 SMD LEDs provide extensively a pleasant daylight white reading light. Another advantage: with this subtle lamp you don’t need any additional switch. As the Touch-Switch Light is turned on or off, respectively by touching the center LED.

Thanks to the IP 67 protection the lamp is dust and watertight. This means, it withstands the heaviest rain when used as outdoor light. Connecting the lamps with reverse polarity is impossible thanks to its electronic switch.



Delivery content

• Touch-switch Lamp for 12 V / 24 V

Recommended use



With the small dimensions (ø 15.5 cm, height 1.6 cm) and the watertight housing it is best suitable for applications on boats, campers, mobile homes, trucks, service vehicles and touring buses. This economical LED lamp also recommends itself for operation within a 12 V/24 V autarchic solar systems, as indoor or outdoor light. For example, in mountain or fishing lodges, in tiny-houses or in allotment gardens.

Technical Data

Operation voltage	12 V/24 V DC
Light source	21 SMD LED
Power consumption (max.)	5.3 W (12 V) 7 W (24 V)
Luminous flux (max.)	420 lm
Efficiency	79 lm/W (12 V) 60 lm/W (24 V)
Beam angle	140°
Protection class	lll
Type Protection	IP 67
Temperature range	-10 °C to +40 °C
Material	PVC
Color	White

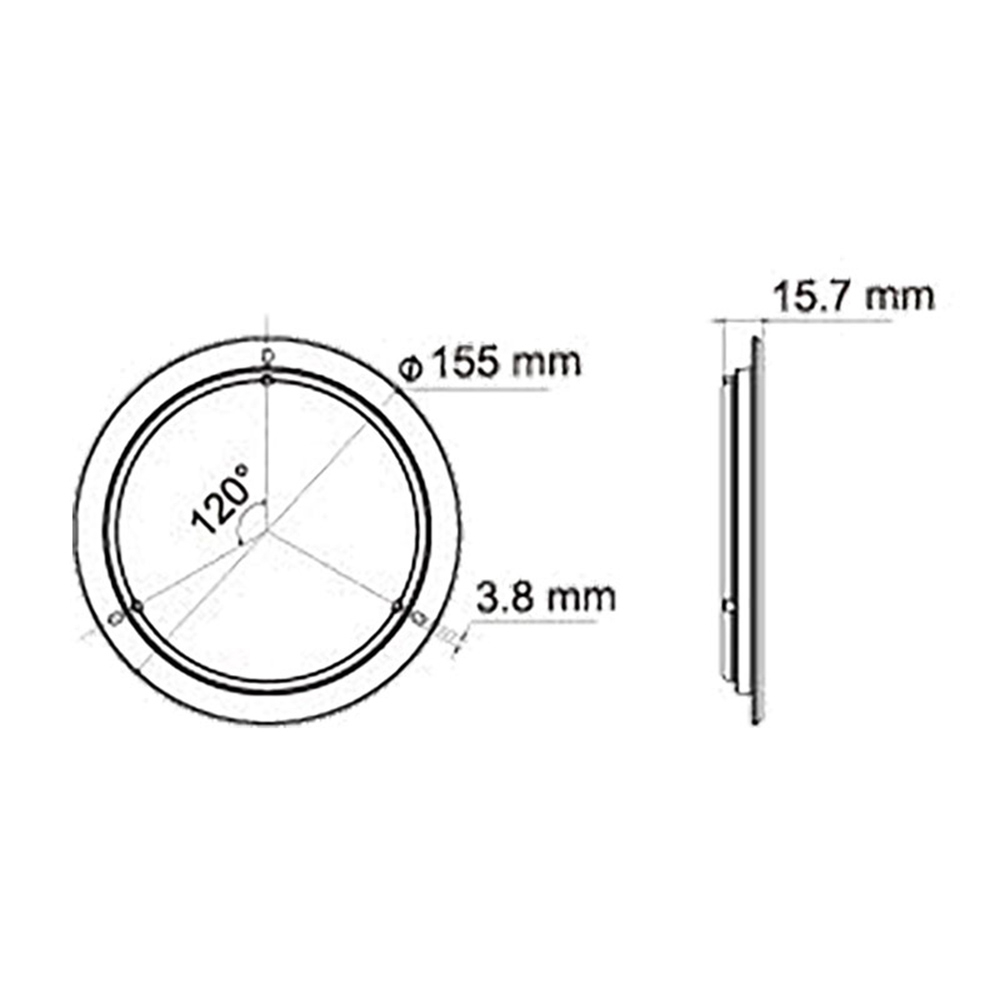

Dimensions	Ø 155 mm / 16 mm
Weight	180 g

---
