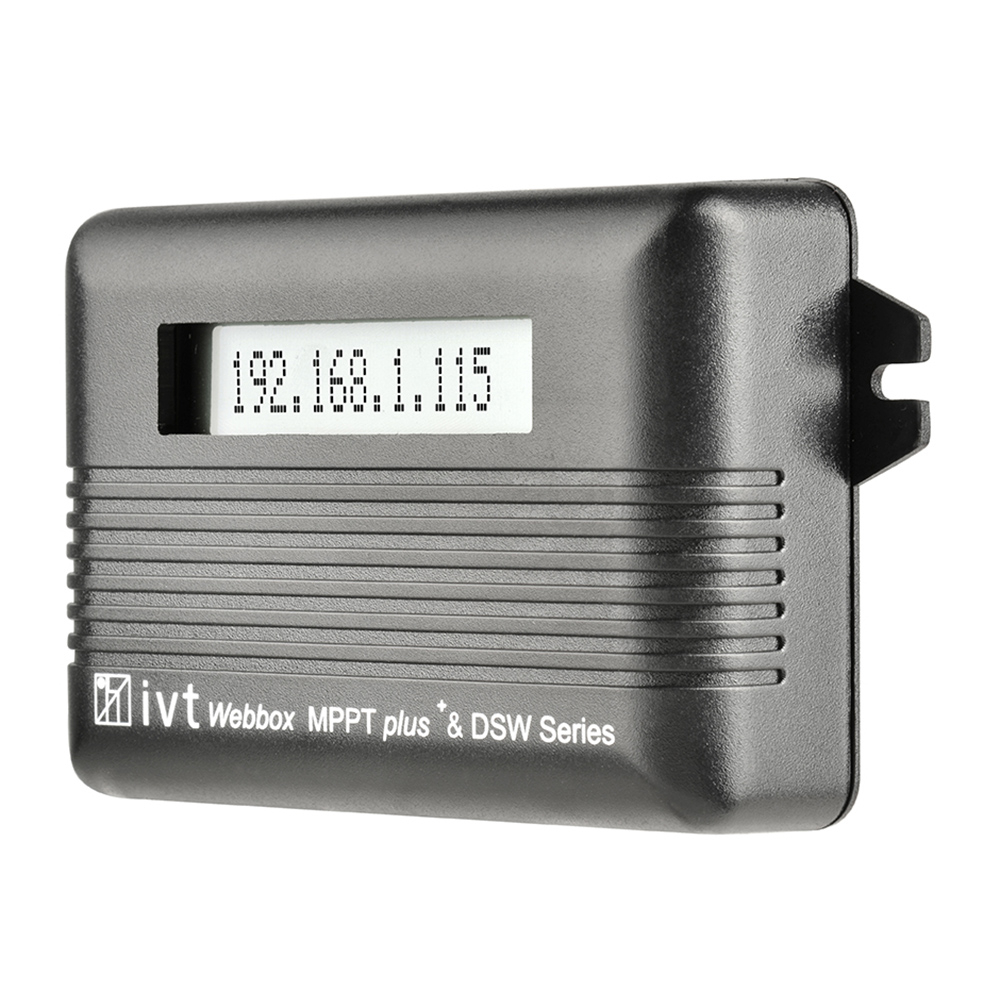

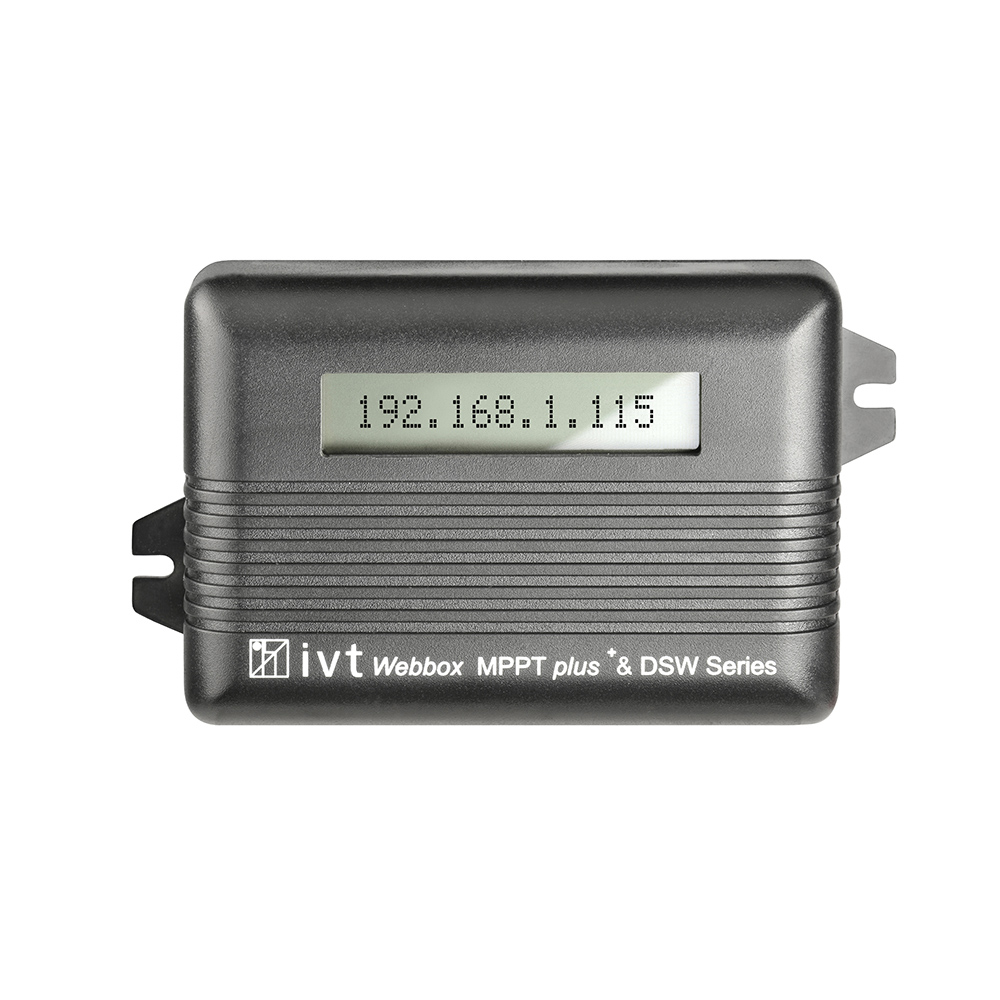

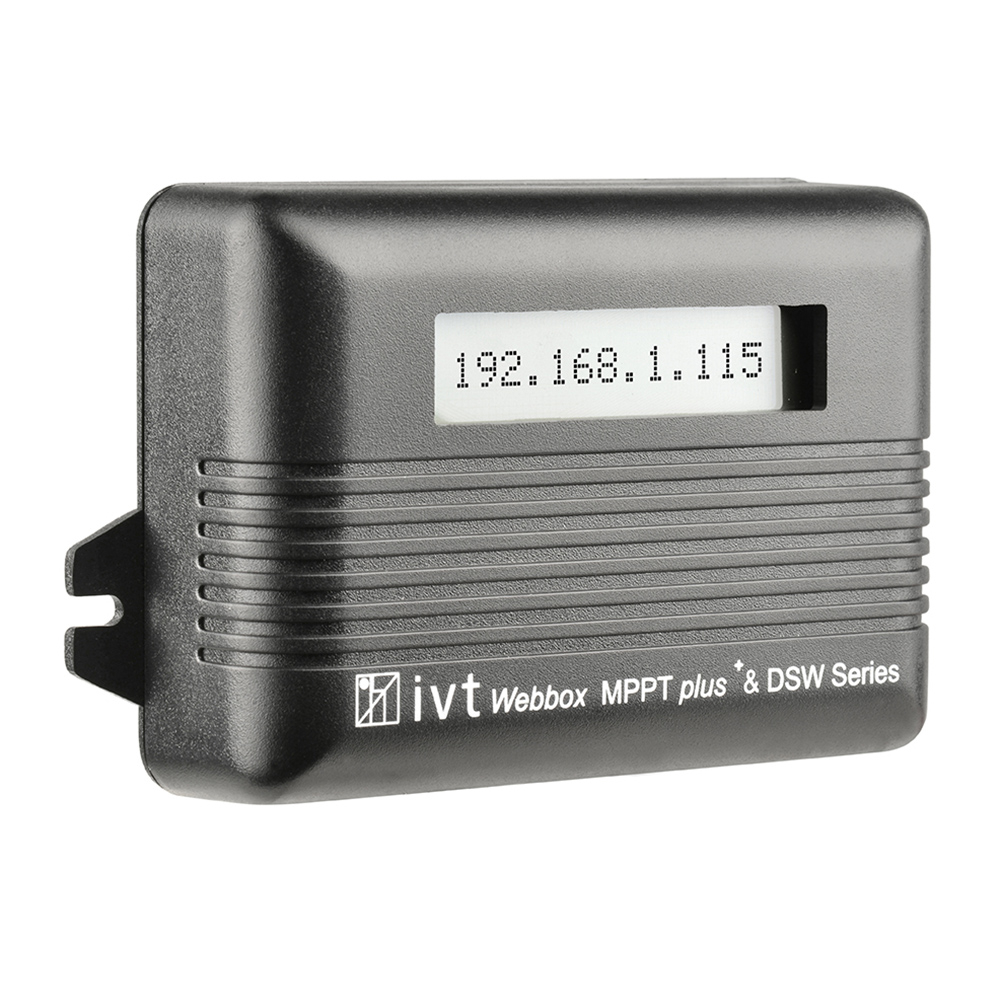

Webbox LCD IVT for DSW Inverters and MPPTplus+ Solar Controllers

Webbox LCD IVT for DSW Inverters and MPPTplus+ Solar Controllers

  • Suitable for Digital Sine wave inverter series
  • Suitable for MPPTplus+ solar controller series
  • Permanent monitoring of the live data of your solar system
  • Long-term evaluation of the solar performance
  • Automatic assignment of IP address
  • Data recording on internal memory
  • No additional PC software required

Item no. 200054 | EAN 4030072200547

143,55 EUR

VAT incl.

Become a sales partner
Request an offer
Description  |  Features & Functions  |  Technical data  |  Compatible with  |  Downloads

Convenient control and monitoring via PC


With the Webbox-LCD, MPPTplus+ solar charge controllers and digital sine wave inverters can be monitored and controlled via an existing computer network.

To do this, simply connect the Webbox to the desired network using a regular LAN cable. The device assigns itself an IP address. Via the Internet browser, important operating parameters such as deep discharge protection, temperature compensation, charging end voltage or maximum charging current can be controlled and evaluated on the input and output side.

The log data recorded daily is stored in the internal memory and can be downloaded as a *.txt file and then imported into Microsoft Excel, for example, and evaluated in tabular form. Access via smartphones and tablets is also possible, provided there is an Internet connection. The Webbox-LCD is supplied with a 1.8 m USB cable and matching plug-in power supply.

Function mode similar to IVT remote controls Connection to network required Cable length 1.8 m CE Made in Europe 3 years warranty

Important characteristics and features

Data recording of the most important operating data

+

Data recording of the Webbox-LCD

No additional PC software is required to control the Webbox-LCD. The IP address is assigned automatically. Data recording is done on the internal memory. The parameters are recorded at 5 minute intervals.

Data recording MPPTplus+ solar controller
Remote control FB-04 and Webbox-LCD
  • Date (Date)
  • Time (Time)
  • Solar power (Ps)
  • Solar current (Is)
  • Battery voltage (Ub)
  • Battery (charge) current (lb)
  • Load current (II)

Data logging DSW inverter
Remote control FB-04 and Webbox LCD
  • Date (Date)
  • Time (Time)
  • Output power (Ps)
  • Output voltage (Uo)

Important note on data recording

+
The functions of the webbox can only be used when the inverter and solar controller are in active operating mode.

The power supply to the remote control is interrupted as soon as the power saving functions (sleep, standby) respond.

3 year manufacturer warranty

+
3 years warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

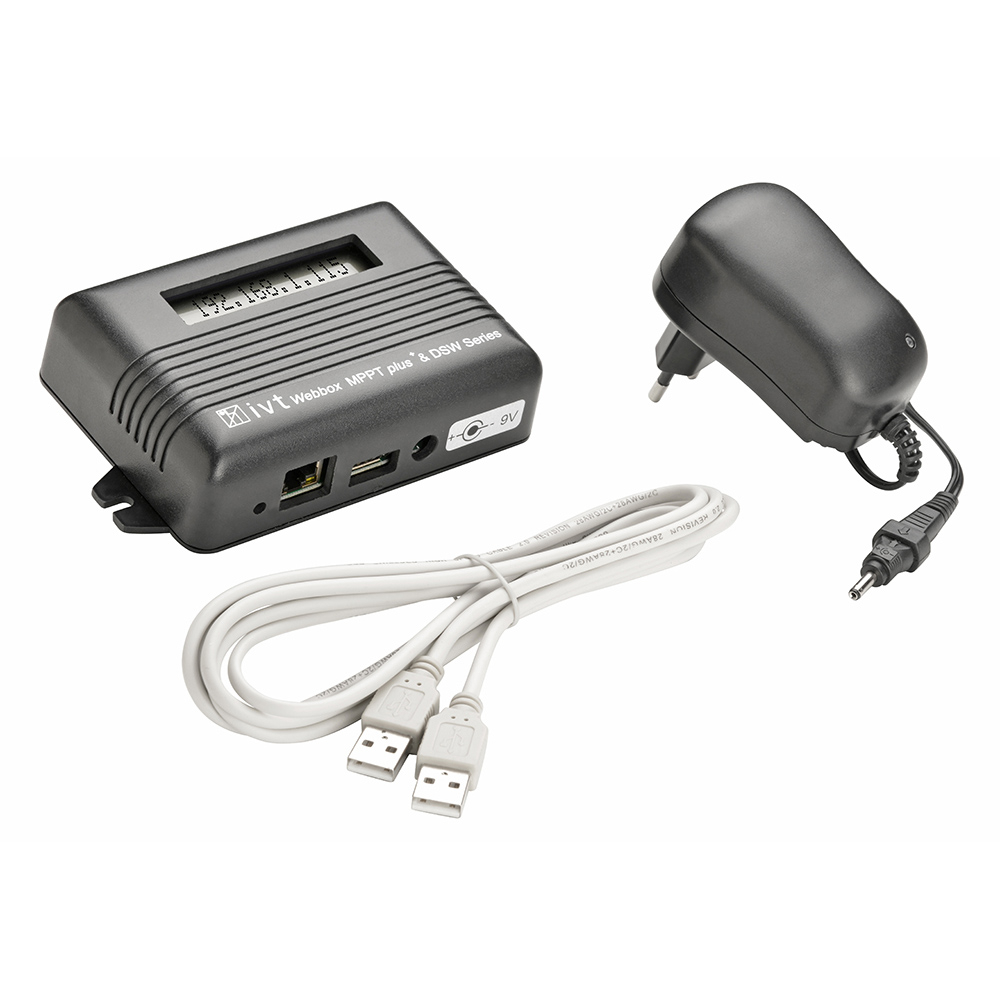

Delivery content

+
  • Webbox LCD
  • Plug-in power supply
  • USB cable
  • Operating instructions DE, GB

The memory card is not included in the delivery.

Technical Data

Power supply via USB cable,
plug-in power supply unit
Intrinsic power consumption  50 mA interface

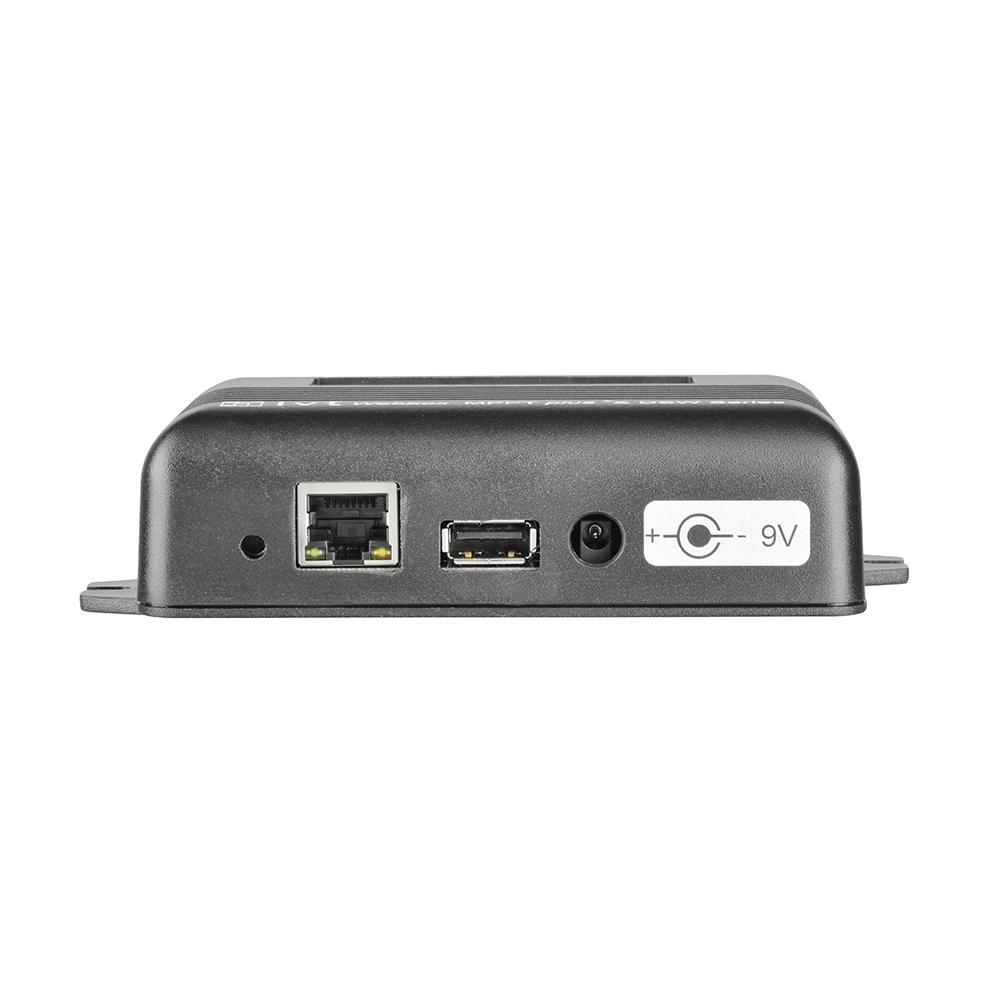

Data exchange USB Type A interface
Network connection RJ45
Cable length USB cable 1.8 m
Internal memory battery CR2032
Housing Plastic
Dimensions (L x W x H)     115 x 80 x 33 mm
Weight 146 g
