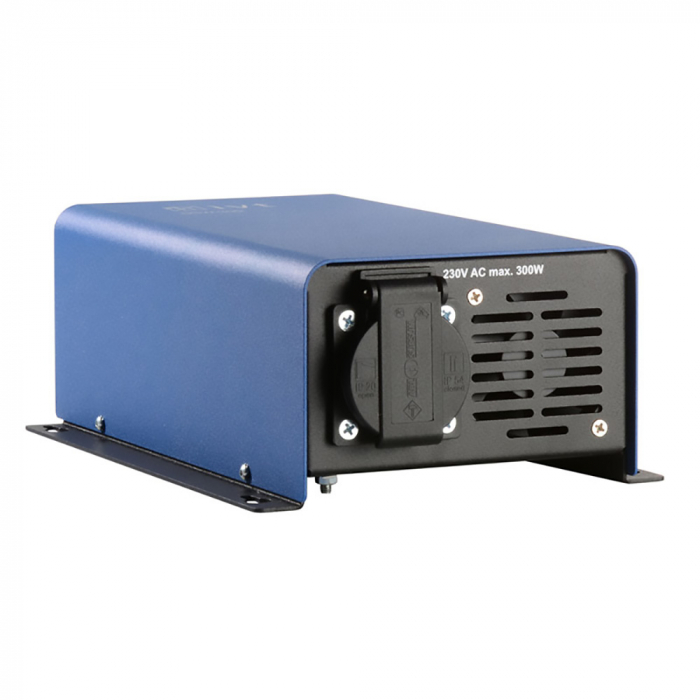

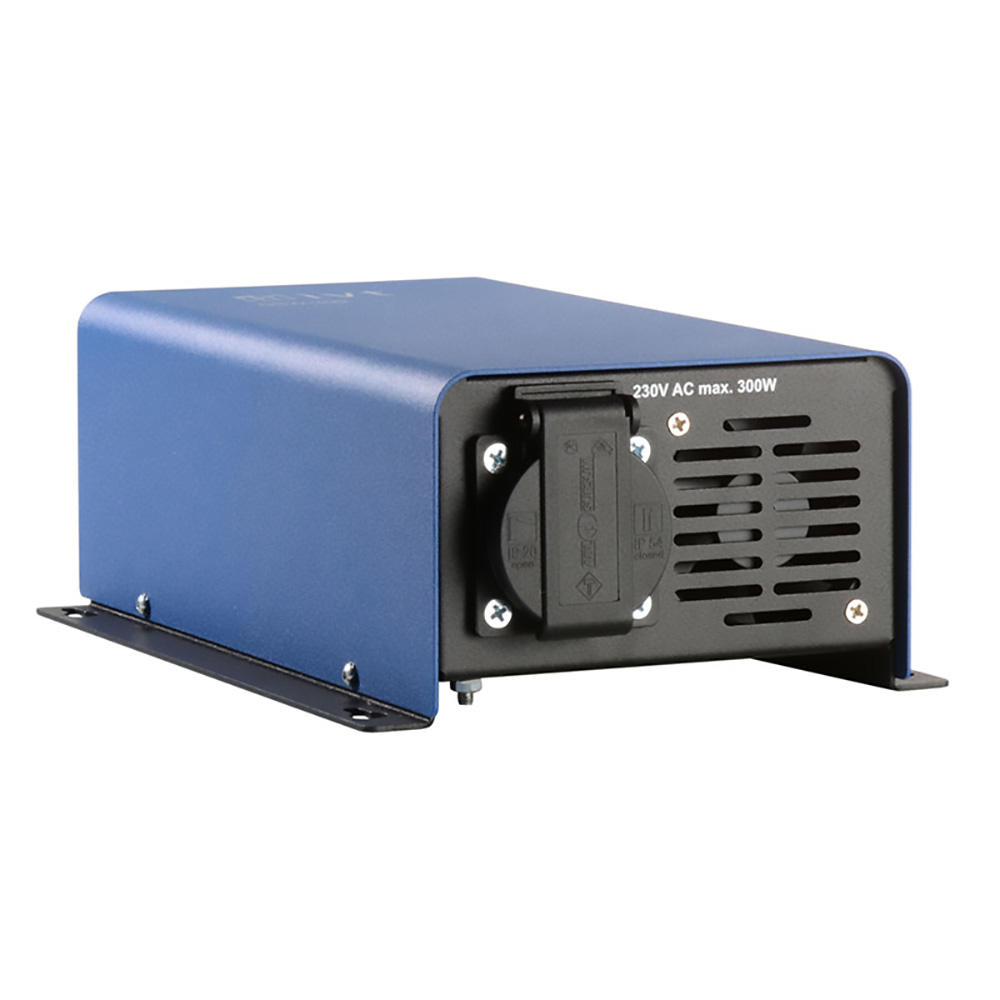

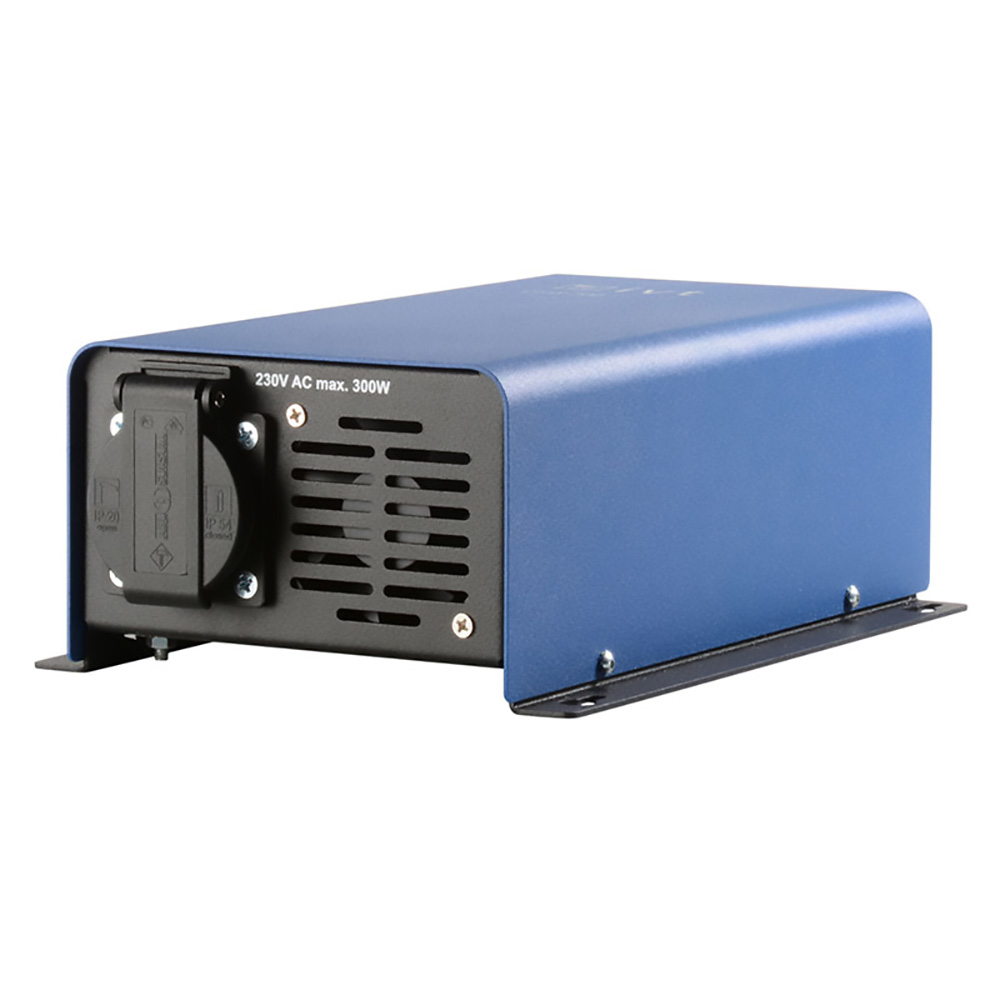

Digital Sine Wave Inverter IVT DSW-300, 24 V, 300 W

  • True sine wave voltage 230 V / 50 Hz
  • Peak power output 600 W
  • Galvanic isolation
  • Standby and sleep function
  • Dynamic deep discharge protection
  • Powerstart function for consumers with high inrush current
  • Performance and temperature controlled fans
  • Overvoltage cut-off
  • Country specific outlet sockets on request

Item no. 430102 | EAN 4030072431026

318,86 EUR

VAT incl.

Become a sales partner
Request an offer

Absolutely self-sufficient thanks to real sine wave AC voltage

The high-quality IVT DSW-300 digital sine wave inverter, 24 V, 300 W reliably and precisely converts a 24 V DC voltage into a real 230 V sine wave AC voltage of 230 V/50 Hz. Independent of the public mains, even sensitive consumers such as electronic tools, chargers, laptops or televisions can be safely supplied with power without interference.

The powerstart function as well as the high peak output power of 600 W support the smooth operation of critical consumers with high starting currents such as compressors or pumps. Extensive safety features, such as galvanic isolation, short-circuit, reverse polarity, overload, overvoltage, overtemperature and dynamic deep discharge protection, allow a professional use.

With the help of the selectable power-saving functions (sleep, standby), the inverter's own power consumption can be reduced to a minimum. Thanks to E-certification, permanent installation in vehicles is permitted.

Note on safety for the commercial sector:
If a multiple socket outlet is connected and several 230 V consumers are used at the same time, the German trade associations stipulate that each additional consumer must be protected with a separate RCD or DI circuit breaker. Please obtain information from your professional association or on the Internet at: www.dguv.de

True sine wave Optionally remote-controlled E-1 CE 3 years warranty Made in Europe

Important characteristics and features

Features & Functions

Real sine wave alternating voltage 230 V/50 Hz

+
The digital control converts a 12 V or 24 V direct voltage into a pure sine wave output voltage of 230 V/50 Hz

Graphic true sine wave
The digital control converts a 12 V or 24 V direct voltage into a pure sine wave output voltage of 230 V/50 Hz

Graphic true sine wave

Microprocessor-controlled electronics

+
A microprocessor forms the heart of the inverter. This control centre monitors the most important parameters of the of the electronic system, such as the input voltage and frequency. This ensures constant stability of the output voltage.

Continuous power 300 W – Peak output power 600 W

+
Especially with loads that require a high inrush current, the start-up does not always run smoothly. For this reason, all DSW inverters are designed to provide twice the continuous output power for a short time.

Please note: To determine the appropriate inverter, you need to know your total power requirement. This is the sum of the power (W or VA) of each individual consumer. We recommend that you allow for a power reserve of 30 - 40 % upwards.

To the overview "How to find your inverter" >

Powerstart function for loads with high inrush current

+
All DSW inverters have a powerstart function as standard.

Inrush current

When the load is switched on, the inrush current can briefly reach 5 to 10 times the specified nominal current. The powerstart function attempts to compensate for this phenomenon by making up to 5 start attempts with maximum output power.


Graphic power start function
All DSW inverters have a powerstart function as standard.

Inrush current

When the load is switched on, the inrush current can briefly reach 5 to 10 times the specified nominal current. The powerstart function attempts to compensate for this phenomenon by making up to 5 start attempts with maximum output power.


Graphic power start function

E-certification: Suitable for permanent installation in vehicles

+
E-1

The digital sine wave inverters meet the legal requirements of the ECE regulations and therefore have the E-certification. They are suitable for permanent installation in all vehicles with road approval, such as passenger cars, utility vehicles or other vehicles with 24 V on-board voltage.

Galvanic isolation of the input and output stage

+

Galvanic isolation


Galvanic isolation (see fig. above)
Thanks to galvanic isolation, there is no electrical conductive connection between the input and output circuit. Therefore, no additional personal protection device ( RCD or DI circuit breaker) is required even for commercial use when only one 230 V consumer is connected.

Please note:
If a multiple socket outlet is connected and several 230 V consumers are used at the same time, the German trade associations stipulate that each additional consumer must be protected with a separate RCD or DI circuit breaker. Please obtain information from your trade association or on the Internet at: www.dguv.de

Extensive protection functions

+
IVT inverters provide protection against reverse polarity and overvoltage at the input as well as against short circuit and overload at the output. In case of overheating, the inverter shuts down automatically.

Dynamic deep discharge protection

+
On the one hand, the dynamic deep discharge protection ensures that the battery is protected against deep discharge; on the other hand, it also allows loads with a high inrush current, as the cut-off threshold is lowered for a short time.

With the optionally available FB-04 remote control and the Webbox-LCD, it is also possible to adjust the deep discharge protection individually. A voltage between 9 V and 12 V (for 12 V models) or 18 V and 24 V (for 24 V models) can be selected.

If the set limit value is reached, the inverter first indicates this by flashing the input LED. The load output of the inverter then switches off automatically. The load output only becomes active again when the battery has reached the necessary restart voltage.

Selectable power-saving functions: Standby, Sleep

+
Graphic standby funktion

Standby function
If the inverter is not needed constantly, the selectable standby function makes it possible to reduce the inverter's own power consumption by approx. 90 %. For this purpose, only DIP switch 2 (see picture) must be switched on directly on the device. The device now checks approx. every 10 seconds, whether a load is connected. If the inverter detects a load above the standby level, it switches on the 230 V AC output and is thus in the normal operating mode again.


Graphic sleep funktion

Sleep function
All inverters of the DSW series are additionally equipped with a sleep function. If the power output is not used for more than 10 minutes, the inverter switches off automatically and no longer draws current.

The device is switched on again by switching it off and on again directly at the device or using the remote switch FS-01 or FS-02 when it is in a location that is difficult to access.

The sleep function can be activated or deactivated directly at the device using DIP-switch 1 (see picture). This prevents unnecessary discharging of the battery.

Operation and display elements

+

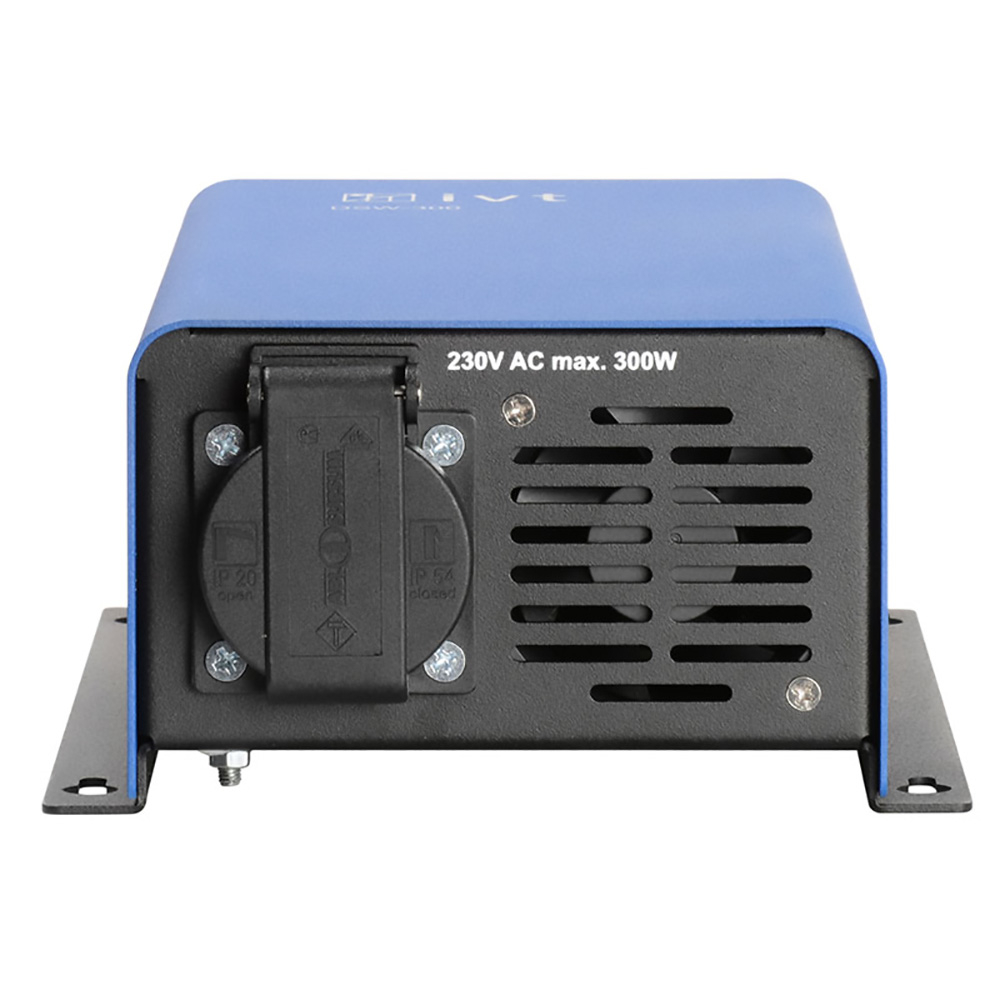

Operation and display elements, Digital Sine Wave Inverter IVT DSW-300, 24 V, front

Solid metal housing
2  Metal rails for secure mounting
3  230 V grounding-type socket
4  Temperature- and power-controlled fan

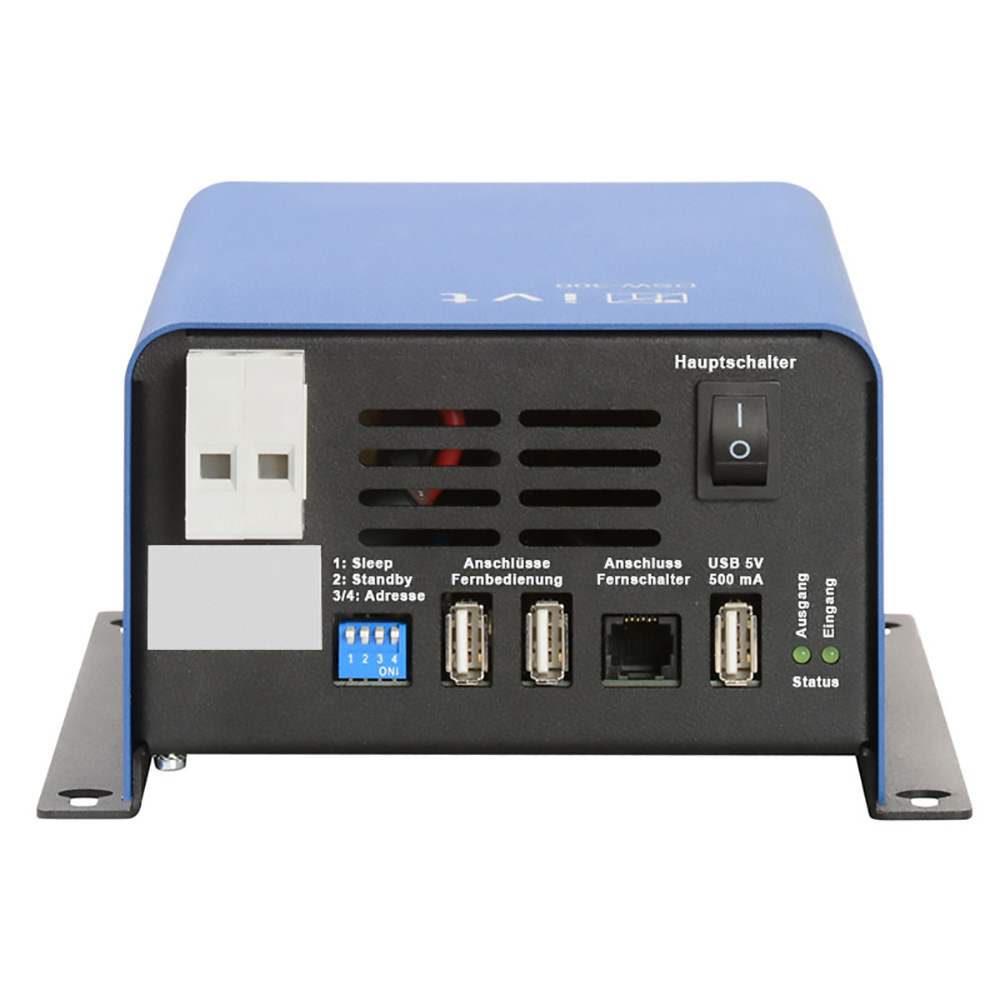

Operation and display elements, Digital Sine Wave Inverter IVT DSW-300, 24 V, back

5   12 V or 24 V terminal clamp for battery
6   DIP-switches for sleep/standby function and addressing
7   Connectors for remote controls FB-04, Webbox-LCD
  Connector for remote switches FS-01 or FS-02
9   5 V USB socket
10  Indicator for input and output voltage
11  Main switch ON/OFF

230 V grounding-type socket – Country-specific customisation on request

+
Connector type: F, C

Standard version suitable for plug type: F, C
All Digital Sine Wave Inverters are equipped with a 230 V grounding-type socket as standard, suitable for the plug types C (Europlug®) and F (Schuko plug®) commonly used in Germany and most European countries.


Stecker-Typ: G

Country-specific output socket United Kingdom
All DSW inverters are available on request at no extra cost with the socket suitable for plug type G (United Kingdom).
Delivery request DSW-300, 24 V, plug type G >


Stecker-Typ: E, C

Country-specific output socket France, Eastern European countries
Furthermore, all DSW inverters are available on request without surcharge with the socket suitable for plug type E, C (France, many Eastern European countries).
Delivery request DSW-300, 24 V, plug type E, C >


We are happy to make other country-specific adaptations on request.
More information on socket standards and mains voltages in Europe >

5 V USB socket as standard

+
All DSW inverters are equipped with a 5 V USB socket for the power supply of suitable external devices such as mobile phones, tablets, cameras or navigation devices.

Temperature- and power-controlled fan

+
The power- and temperature-controlled fan minimises the noise of the inverter by only being switched on when required.

Lightweight and powerful

+
DSW inverters set themselves apart through their low weight. Conventional inverters are often equipped with large ring transformers. As a result, they are heavy and bulky. In contrast, the microprocessor-controlled IVT inverters work digitally thanks to innovative technology: large, heavy components are omitted and replaced with small and powerful components.

Solid metal housing

+
Solid metal housing

The valuable inner workings of the inverter are protected by a solid and sturdy metal housing. Thanks to the mounting rails, the inverter can be stably fixed anywhere.

Remote switch on/off: Available as accessory

+
Remote switch FS-01, surface-mounted            Remote switch FS-02, flush-mounted

Remote switch FS-01, surface-mounted
Product no. 430111
To the product >

Remote switch FS-02, flush-mounted
Product no. 430121
To the product >


Inverters are often installed in places that are difficult to access during later use. With the remote switches FS-01 (surface-mounted version) and FS-02 (flush-mounted version) all DSW inverters can be switched on and off at a suitable location. The remote switch replaces the main switch on the inverter.

Remote control: Individual control and monitoring of up to 4 units

+
Remote control FB-04, cable-connected            Webbox-LCD, PC version

Remote control FB-04, cable-connected
Product no. 200051
To the product >

Webbox-LCD, PC version
Product no. 200054
To the product >


With the optionally available remote control FB-04 (cable-connected) as well as the Webbox-LCD (operation in an existing computer network), it is possible to individually adjust the deep discharge protection.

For the 12 V models, a voltage between 9 V and 12 V can be selected, for the 24 V models, a voltage between 18 V and 24 V can be selected.

The remote control and the Webbox-LCD also offer the advantage of individually controlling and monitoring up to 4 devices (inverters of the IVT DSW series, solar controllers of the MPPTplus+ series).

Matching connection cable sets

+
For a safe and fault-free operation of the DSW inverters, we recommend to use the original IVT connection cables.

These are exactly fitted to the respective inverter in terms of conductor cross-section and cable length. The high-quality production of our connection cables guarantees a particularly long service life even under high loads.

The cable set is already pre-assembled with matching ring lugs and wire end ferrules for connection to the battery and the inverter. All original IVT connection cables are delivered including fuse holder and 200 A fuse.


Connection Cable IVT for DSW-Inverters

Connection Cable IVT for DSW-Inverters 1 m 16 mm2
Product no. 431000
To the product >

Connection Cable IVT for DSW-Inverters 2 m 16 mm2
Product no. 431001
To the product >

Connection Cable IVT for DSW-Inverters 3 m 16 mm2
Product no. 431009
To the product >

Connection Cable IVT for DSW-Inverters 1 m 25 mm2
Product no. 431002
To the product >

Connection Cable IVT for DSW-Inverters 2 m 25 mm2
Product no. 431003
To the product >

Connection Cable IVT for DSW-Inverters 3 m 25 mm2
Product no. 430064
To the product >

Connection Cable IVT for DSW-Inverters 4 m 25 mm2
Product no. 430065
To the product >

3 year manufacturer warranty

+
3 years warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

Delivery content

+
  • Digital Sine Wave Inverter IVT DSW-300, 24 V, 300 W
  • Operating instructions DE, EN, FR, NL, IT, ES

Please order the connection cable set separately.

Recommended use

Suitable for passenger cars Suitable for transporters Suitable for motorhomes Suitable for caravans Suitable for trucks Suitable for coaches Suitable for motorboat Suitable for solar system

The precise stand-alone inverters of the DSW series can be used in a variety of ways for both mobile and stationary applications. They are suitable for use in cars, trucks, service and commercial vehicles, motor homes, caravans, construction site vehicles, tractors, motor and sail boats, in solar island systems and much more.

Technical Data

Input
Nominal voltage DC
24 V
Voltage range DC
22 - 32 V
Nominal input current
12.5 A
Input current (max.)
15.5 A
Deep discharge protection voltage, idle 21 V
Deep discharge protection voltage, nominal 19 V
Deep discharge protection voltage, adjustable*) 18 - 24 V
Advance warning of deep discharge protection switch-off 1 V above switch-off voltage
Switch-on voltage 25 V
Over-voltage switch-off 32 V
Nominal power consumption, idle 4 W
Nominal power consumption, standby 0.4 W
Output
Output voltage AC (± 2 %) 230 Veff
Frequency (± 1 %) 50 Hz
Wave form Sinusoidal
Continuous output current 1.3 Aeff
Continuous output power 300 VA
Peak output power (max. 2 s) 600 VA
Power factor cos phi > 0.8
Nominal efficiency 90 %
Standby activation, output power < 50 VA
General
Input connector Screw terminal
Output connector Isolated ground socket
Suitable for plug type F, C
Output connector USB (type A) 5 V/500 mA DC
Temperature range (66 % nominal power) -25 °C to +60 °C
Temperature range (100 % nominal power) -25 °C to +40 °C
Sleep function Optional
Standby function Optional
Galvanic isolation (input/output) Yes
Powerstart function Yes
E-certification Yes
Remotely controllable Yes
Fan cooling Yes

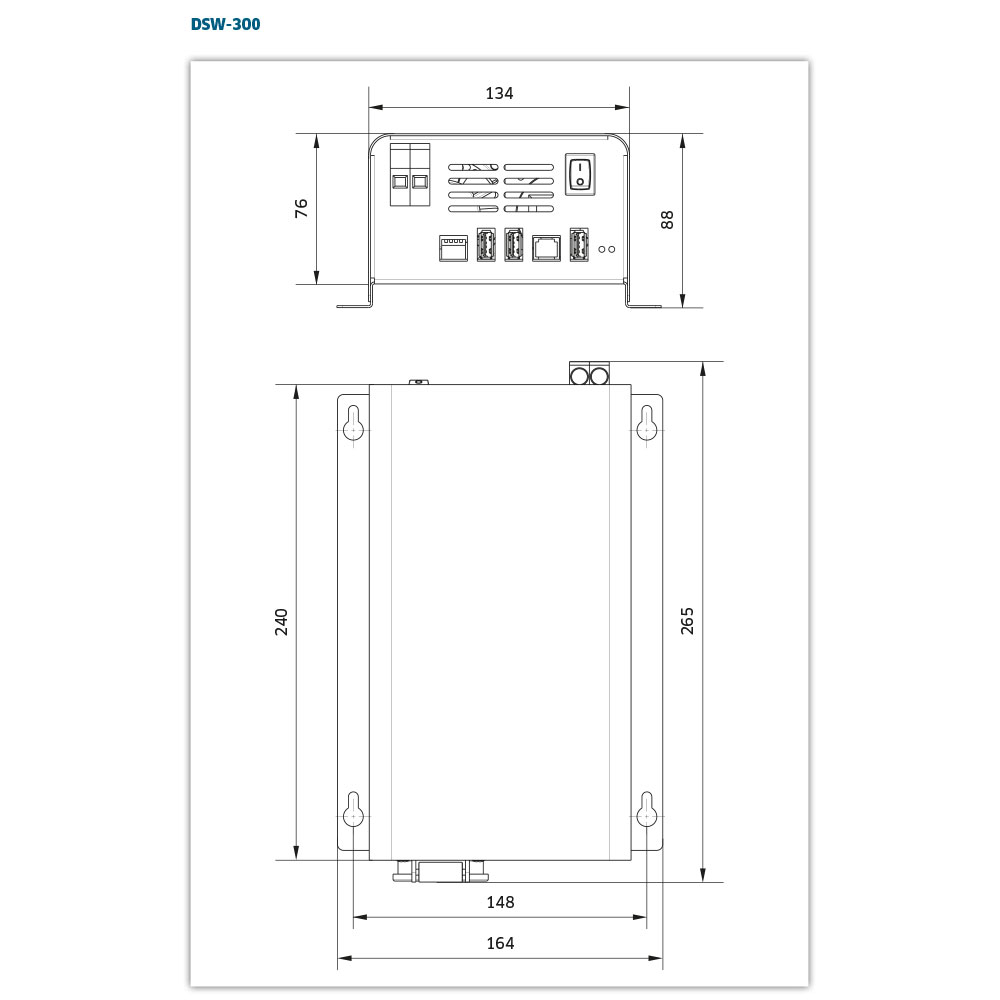

Dimensions (L x W x H) 263 x 164 x 88 mm
Weight 1.8 kg
*) only with remote control FB-04 or Webbox-LCD
