Sine Wave Inverters

Sine wave inverters of the SW series can be used in many situations in mobile and stationary settings. The 100 W and 150 W models can be used flexibly in different vehicles. If required, simply insert the vehicle adapter plug into the 12 V socket (24 V socket) of the vehicles or boat so that permanent installation is not always necessary. All models are authorized for permanent installation in vehicles thanks to the E-certification.
12 V models  |  24 V models  |  Advantages  |  Accessories  |  Downloads

12 V SW inverters – Model overview

  Sinus Inverter IVT SW-100/12 V Sinus Inverter IVT SW-150/12 V Sinus Inverter IVT SW-300/12 V
Model SW-100/12 V SW-150/12 V SW-300/12 V
Input
Nominal voltage DC 12 V 12 V 12 V
Voltage range DC 11 - 15 V 11 - 15 V 11 - 15 V
Deep discharge protection voltage, adjustable No No No
Output
Output voltage AC (- 8 %/+ 5 %) 225 V 225 V 225 V
Frequency (± 1 %) 50 Hz 50 Hz 50 Hz
Wave form Sinusoidal Sinusoidal Sinusoidal
Continuous output power 100 VA 150 VA 300 VA
Peak output power (max. 2 s) 200 VA 300 VA 600 VA
Nominal efficiency > 88 % > 88 % > 88 %
General
Input connector 12 V DC car adapter 12 V DC car adapter Pole terminal 2 x M8
Output connector 1 x Euro socket 1 x Isolated ground socket 1 x Isolated ground socket
1 x Euro socket
Sleep function No No No
Standby function No No No
Galvanic isolation (input/output) Yes Yes No
E-certification Yes Yes Yes
Dimensions (L x W x H) Ø 170 x 50 mm 120 x 245 x 70 mm  240 x 245 x 70 mm
Item no. 430012 430000 430002
Model Description
Sinus Inverter IVT SW-100/12 V
SW-100/12 V		 Input connector:
12 V DC car adapter
Input: 11 - 15 V DC
Output: 225 V/50 Hz
Wave form: Sinus
Continuous output power:
100 VA
Peak output power: 200 VA
Dimensions: Ø 170 x 50 mm
Item no.: 430012
Sinus Inverter IVT SW-150/12 V
SW-150/12 V		 Input connector:
12 V DC car adapter
Input: 11 - 15 V DC
Output: 225 V/50 Hz
Wave form: Sinus
Continuous output power:
150 VA
Peak output power: 300 VA
Dimensions: 120 x 245 x 70 mm
Art.-Nr.: 430000
Sinus Inverter IVT SW-300/12 V
SW-300/12 V		 Input connector:
Pole terminal 2 x M8
Input: 11 - 15 V DC
Output: 225 V/50 Hz
Wave form: Sinus
Continuous output power:
300 VA
Peak output power: 600 VA
Dimensions: 240 x 245 x 70 mm
Art.-Nr.: 430002

24 V SW inverters – Model overview

  Sinus Inverter IVT SW-150/24 V Sinus Inverter IVT SW-300/24 V Sinus Inverter IVT SW-600/24 V Sinus Inverter IVT SW-600/24 V
Model SW-150, 24 V SW-300, 24 V SW-600, 24 V
Input
Nominal voltage DC 24 V 24 V 24 V
Voltage range DC 22 - 30 V 22 - 30 V 22 - 30 V
Output
Output voltage AC (- 8 %/+ 5 %) 225 V 225 V 225 V
Frequency (± 1 %) 50 Hz 50 Hz 50 Hz
Wave form Sinusoidal Sinusoidal Sinusoidal
Continuous output power 150 VA 300 VA 600 VA
Peak output power (max. 2 s) 300 VA 600 VA 1200 VA
Nominal efficiency > 88 % > 88 % > 88 %
General
Input connector 24 V DC car adapter Pole terminal 2 x M8 Pole terminal 2 x M8
Output connector 1 x Isolated ground socket 1 x Isolated ground socket
1 x Euro socket		 1 x Isolated ground socket
1 x Euro socket
Sleep function No No No
Standby function No No No
Galvanic isolation (input/output) Yes No No
E-certification Yes Yes Yes
Dimensions (L x W x H) 120 x 245 x 70 mm 240 x 245 x 70 mm 340 x 245 x 70 mm
Item no. 430001 430003 430005
Model Description
Sinus Inverter IVT SW-150/24 V
SW-150, 24 V		 Input connector:
24 V DC car adapter
Input: 22 - 30 V DC
Output: 225 V/50 Hz
Wave form: Sinusoidal
Continuous power: 150 VA
Peak power: 300 VA
Dims.: 120 x 245 x 70 mm
Item no.: 430001
Sinus Inverter IVT SW-300/24 V
SW-300, 24 V		 Input connector:
Pole terminal 2 x M8
Input: 22 - 32 V DC
Output: 225 V/50 Hz
Wave form: Sinusoidal
Continuous power: 300 VA
Peak power: 600 VA
Dims.: 240 x 245 x 70 mm
Item no.: 430003
Sinus Inverter IVT SW-600/24 V Sinus Inverter IVT SW-600/24 V
SW-600, 24 V		 Input connector:
Pole terminal 2 x M8
Input: 22 - 32 V DC
Output: 225 V/50 Hz
Wave form: Sinusoidal
Continuous power: 600 VA
Peak power: 1200 VA
Dims.: 340 x 245 x 70 mm
Item no.: 430005

Advantages of the SW inverter series

Microprocessor-controlled electronics

The microprocessor-controlled electronics ensure that the most important operating parameters, such as input voltage and frequency, are constantly monitored and regulated fully automatically.

This ensures constant stability of the output voltage.

True sine wave alternating voltage

All IVT inverters in the SW series convert a battery voltage of 12 V or 24 V DC into a true sine wave AC voltage of 250 V/50 Hz at the output.

The true sine wave enables the safe and trouble-free operation of sensitive consumers.


Power start function

All SW inverters have a power start function as standard.

Advantage: loads with a high inrush or starting current are controlled several times in quick succession with the maximum output power of the inverter, thus facilitating reliable starting of powerful loads.


Flexible connection via vehicle adapter

The sine wave inverters SW-100, 12 V and SW-150, 12 V and 24 V, can be used flexibly in different vehicles.

If required, the vehicle adapter plug is simply plugged into the 12 V or 24 V socket of the vehicle or boat. A fixed installation is not necessary.



Extensive protective functions

SW series inverters work absolutely reliably and safely even under the toughest conditions. They are protected against overload, short circuit and overheating as standard.

An imminent deep discharge of the battery is indicated by a visual warning (LED) and prevented by automatic switch-off.

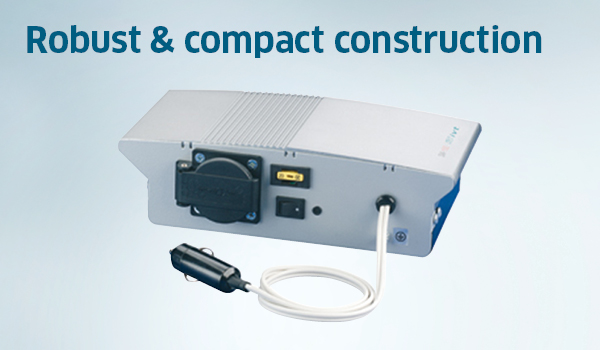

Robust & compact design

Conventional inverters are often fitted with large toroidal transformers. As a result, these are heavy and unwieldy.

Thanks to innovative technology, IVT inverters replace large, heavy components with small and powerful ones.

The SW series inverters are lightweight and can be used as a stand-alone unit or mounted on a wall.

E-certification

All IVT sine wave inverters are suitable for permanent installation in all vehicles with road approval, whether passenger cars, commercial vehicles or other vehicles with 12 V or 24 V on-board voltage.

They fulfil the legal requirements of the ECE regulation and are therefore E-certified.



Development and production in the EU

Inverters are often exposed to high loads and must function absolutely reliably even under difficult conditions.

That is why we only use quality components in all IVT devices, place the highest demands on the manufacturing process and put every product through its paces before it is delivered.

This is what we at IVT consider to be quality made in Europe.

Our plus: The accessories

Connection Cables


Switching Stations


Boosters & Second
Battery Charger

Power Distribution Boxes

12 V and 24 V sine wave inverters


Sinus Inverter IVT SW-100, 12 V, 100 W

Sinus Inverter IVT SW-100, 12 V, 100 W

Item no. 430012

98,00 EUR
VAT incl.

Details

Sinus Inverter IVT SW-150, 12 V, 150 W

Sinus Inverter IVT SW-150, 12 V, 150 W

Item no. 430000

160,28 EUR
VAT incl.

Details

Sinus Inverter IVT SW-150, 24 V, 150 W

Sinus Inverter IVT SW-150, 24 V, 150 W

Item no. 430001

160,28 EUR
VAT incl.

Details

Sinus Inverter IVT SW-300, 12 V, 300 W

Sinus Inverter IVT SW-300, 12 V, 300 W

Item no. 430002

193,78 EUR
VAT incl.

Details

Sinus Inverter IVT SW-300, 24 V, 300 W

Sinus Inverter IVT SW-300, 24 V, 300 W

Item no. 430003

193,78 EUR
VAT incl.

Details

Sinus Inverter IVT SW-600, 24 V, 600 W

Sinus Inverter IVT SW-600, 24 V, 600 W

Item no. 430005

318,00 EUR
VAT incl.

Details

.
